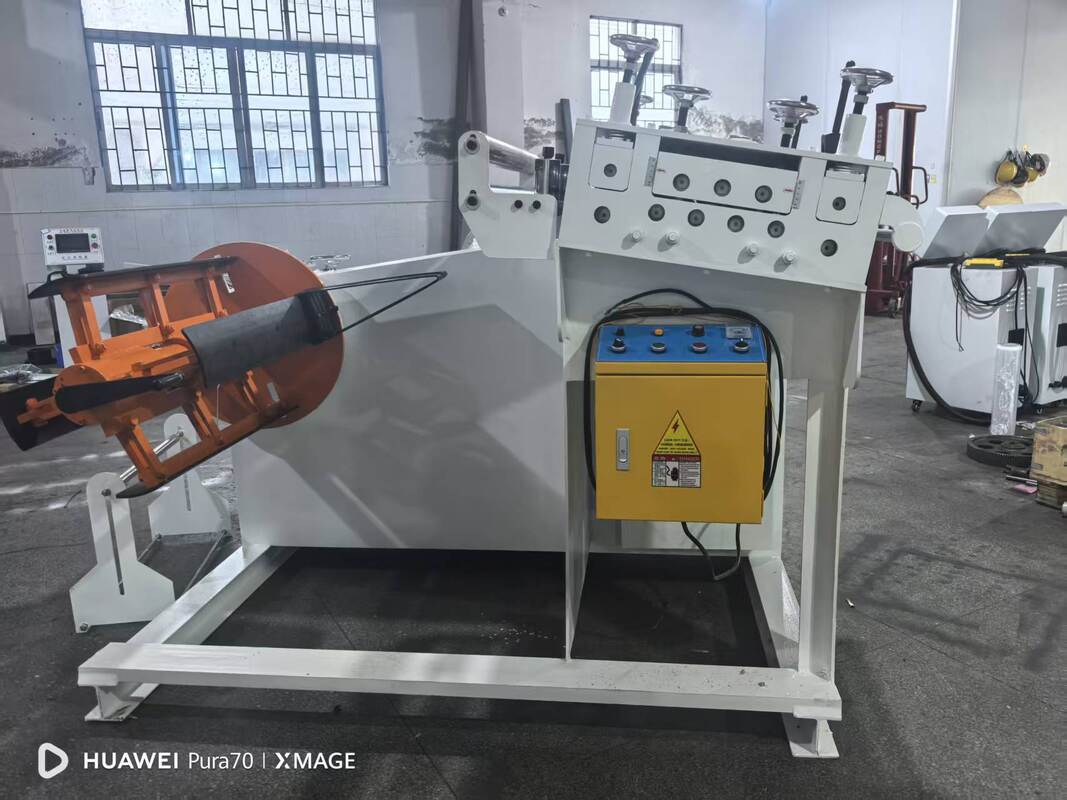

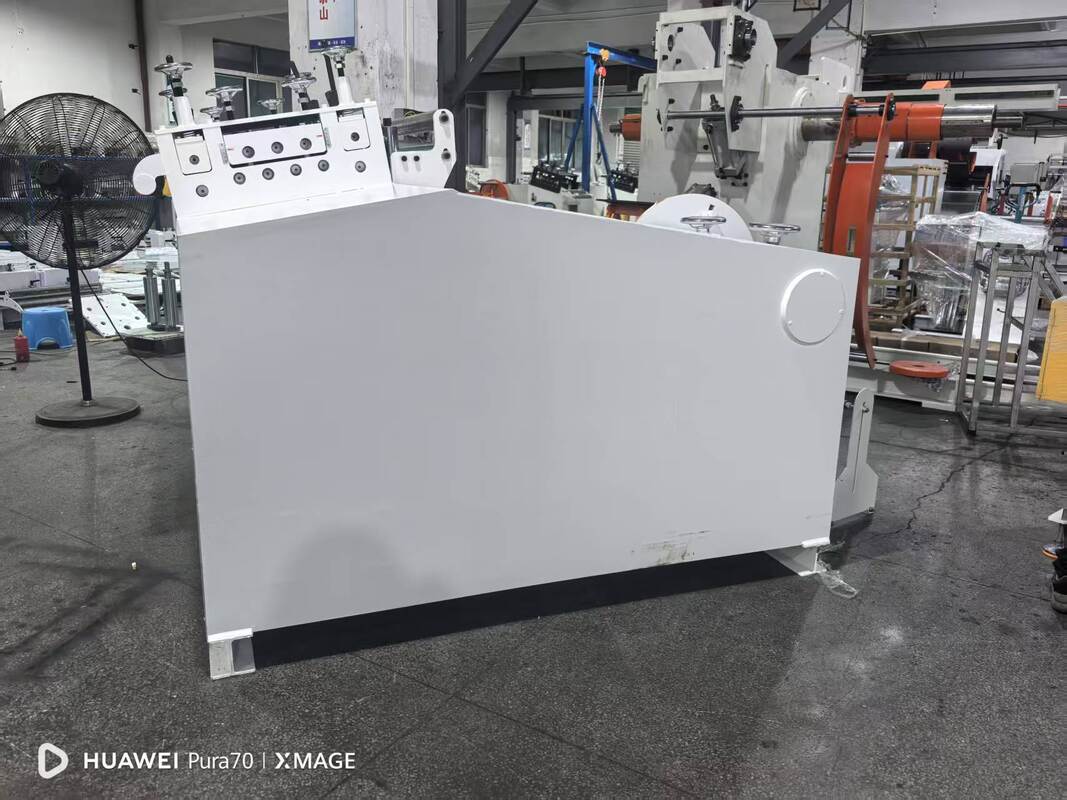

2 in 1 Decoiler Straightener 0.5-3.2mm Thick 15m/min Correction Speed 400mm Width

2 in 1 Decoiler Straightener

3.2mm Thick Decoiler Straightener

15m/min Correction Speed Straightener Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Chat Now

Request A Quote

Product Details

Place Of Origin:

Guangdong, China

Type:

Feeder Machine

Use:

Sheet

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Motor

Brand Name:

Qiaosen

Voltage:

380

Power(w):

1500

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Weight (kg):

1200

Feeding Speed:

15 M/min

Item Name:

Pneumatic & Mechanical Feeding Straightening Feeder

Keyword:

Straightening Feeder

Width Of Material:

400mm

Thickness Of Material:

Max 3.2mm

Material Diameter:

450-530mm

Material Outer Diameter:

1200mm

Material Weight:

1200kg

Correction Speed:

15m/min

Motor HP:

2HP

Expansion Method:

Moves Type

Highlight:

2 in 1 Decoiler Straightener

3.2mm Thick Decoiler Straightener

15m/min Correction Speed Straightener Machine

Payment & Shipping Terms

Price

$2,288/cases 1-2 cases

Electric Decoiler Uncoiler Machine with Mechanical Expansion Structure

Chat Now

GO-500 Metal Straightening Machine 15m/min 500mm Width 3.2mm Max Thickness

Chat Now

MT-200 Metal Straightening Machine 200mm Max width 1.6mm Steel Plate Thickness for Metalworking

Chat Now

GO-400 Metal Straightening Machine Adjustable 380V For Various Metal Products

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

2-in-1 Decoiler Straightener Machine (0.5-3.2mm)

Automatic steel plate sheet decoiler metal material straightening and leveling machine

Product Specifications

No	Item	Data
1	Width of material	400mm
2	Leveling thickness	0.5-3.2mm
3	Material diameter	450-530mm
4	Material outer diameter	1200mm
5	Material weight	1200kg
6	Correction speed	15m/min
7	Machine weight	1200kg

Key Features

Suitable for the collection and delivery of various coil materials, both thin metal and non-metal materials
Motor power can be added to match the feeding device
The tension of the brake device can be adjusted, and the main shaft uses a reinforced type to make the material reel rotate more smoothly and increase the load force
Indispensable parts for fully automatic production of presses, saving manpower, material resources, reducing costs, and achieving ideal results
Imported parts are used, with fewer failures and long life
