High Precision Feeding Punch Press Servo Feeder 20M/Min Speed Pneumatic Releasing

Punch Press Servo Feeder 20M/Min

Pneumatic Punch Press Servo Feeder

High Precision Feeding Servo Roll Feeder

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Chat Now

Request A Quote

Product Details

Place Of Origin:

Guangdong, China

Type:

Feeder Machine

Use:

Sheet

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Motor

Brand Name:

Qiaosen

Voltage:

380

Power(w):

1500

Dimension(l*w*h):

680*630*600mm

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Weight (kg):

150

Feeding Speed:

20 M/Min

Item Name:

Pneumatic & Mechanical Feeding Straightening Feeder

Keyword:

Coil Servo Feeder

Width Of Material:

200mm For Coil Feeder

Thickness Of Material:

Max 3.2mm For High Speed Feeder With Yaskawa Servo

Feeding Length:

0.01-9999.99mm For Servo Roll Feeder

Roll Pressure:

Spring Type For Pneumatic Feeder

Releasing System:

Pneumatic Type

Pass Line Adjustment:

50mm For Nc Servo Feeder For Stamping Machine

Power Supply:

AC380V/3phase For Servo Motor Roll Feeder

Warranty:

1year For Pneumatic_feeder

Highlight:

Punch Press Servo Feeder 20M/Min

Pneumatic Punch Press Servo Feeder

High Precision Feeding Servo Roll Feeder

Payment & Shipping Terms

Price

$2,800/cases 1-2 cases

Supply Ability

1set 7days

Servo Motor NC Feeder Machine For Metal Sheet Plate Stamping

Chat Now

Servo Motor Metal Sheet Coil Feeder Machine For Metal Stamping Machine

Chat Now

NC-800 Automatic Pneumatic Servo Roll Feeder 800mm for Sheet Metal Coil Strip Punch Press

Chat Now

video

High Precision Feeding Pneumatic Punching Press For Metal Stamping

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

Pneumatic Automatic Metal Coil Feeder for Punch Presses

Servo Roller Feeder Punching Press Automatic Pneumatic & Mechanical Feeding Straightening feeder

Product Specifications

No	Item	Data
1	Width of material	AC380V/3phase
2	Thickness of material	MAX3.2
3	Feeding length	0.01-9999.99
4	Roll pressure	Spring type
5	Releasing system	Pneumatic type
6	Pass line adjustment	50mm

Key Features

Can feed material for various thicknesses and feeding stroke lengths
Suits high-speed feeding and long stroke length feeding to improve production capacity and precision
User-friendly operation panel for inputting feeding length (0.01mm-9999.99mm) and feeding speed
Pneumatic cylinder releasing method ensures reliable operation without malfunction
Mechanical releasing method available upon customer request
High precision feeding: ±0.02mm
Supports 5 sets of different feeding lengths with up to 999 strokes per length
Normal manual running mode for easy feeding of steel material to stamping mold
Effective releasing device responds to press machine's cam position electronic signal and material thickness
Touch screen interface for easy feeding length input
Hollow feeding roller with HRC60 surface hardness and chrome plating

Structural Design

High-quality servo motor for efficient feeding testing time reduction
High-sensitivity encoder ensures feedback and improves feeding precision
Quality belt system eliminates gear gaps, abrasion, noise, and lubrication requirements
Internally mounted motor design protects against potential damage

The Role of Servo Feeder in Punching Machines

Name: High Precision Feeding Punch Press Servo Feeder 20M/Min Speed Pneumatic Releasing
Brand: Dongguan Qiaosen Machinery Co., Ltd.
Price: 1.00 USD
Availability: InStock

The servo feeder is a key auxiliary device for automated stamping operations. Its primary function is to accurately, stably and automatically feed metal coils or sheets into the mold, replacing manual feeding to achieve higher efficiency, safety and precision across the entire production line.

1. Ensures High Stamping Precision

Driven by a servo motor with high-precision encoder control, the machine delivers feeding accuracy up to ±0.01mm.

Feeding length, speed and pitch can be precisely set to maintain consistent dimensions during continuous stamping, effectively improving product yield.

2. Greatly Improves Production Efficiency

It operates in synchronized linkage with the punch press, enabling fully automatic and continuous feeding and eliminating manual handling time.

It supports high-speed stamping and significantly increases output compared with manual feeding.

Allows long hours of uninterrupted automated production with minimal downtime.

3. Enhances Workplace Safety

Completely replaces manual operation inside the mold area, preventing hand injuries and stamping accidents.

Ideal for repetitive, high-speed stamping tasks and reduces risks caused by human fatigue.

4. Reduces Labor Costs

One operator can manage multiple production lines consisting of punch presses and feeders, reducing headcount requirements.

Lowers labor intensity and minimizes errors caused by manual operation.

5. Wide Adaptability to Materials and Processes

Compatible with various metal materials including steel strips, copper strips, aluminum strips and stainless steel coils.

When combined with uncoilers and levelers, it forms an integrated automatic production line: uncoiling → leveling → feeding → stamping.

Widely used in progressive die stamping for terminals, connectors, motor stators and rotors, hardware parts and electronic components.

6. Stable Operation and Less Material Waste

Stable feeding pitch avoids deviation, reducing scrap and material loss.

Uniform feeding force prevents surface scratches or deformation, improving overall product quality.

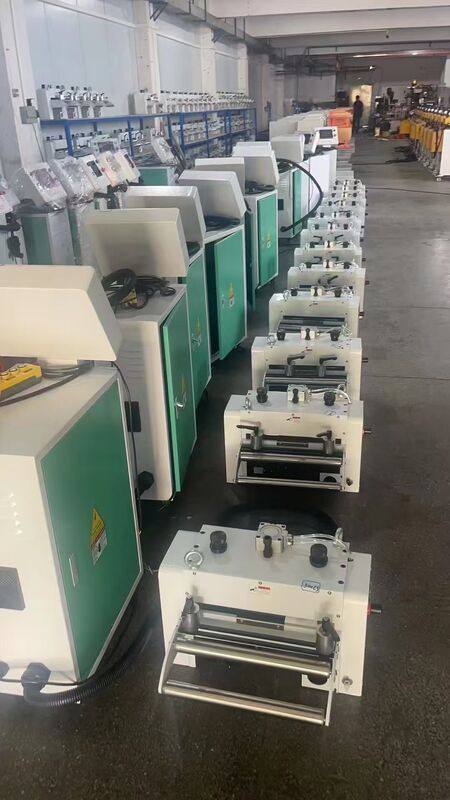

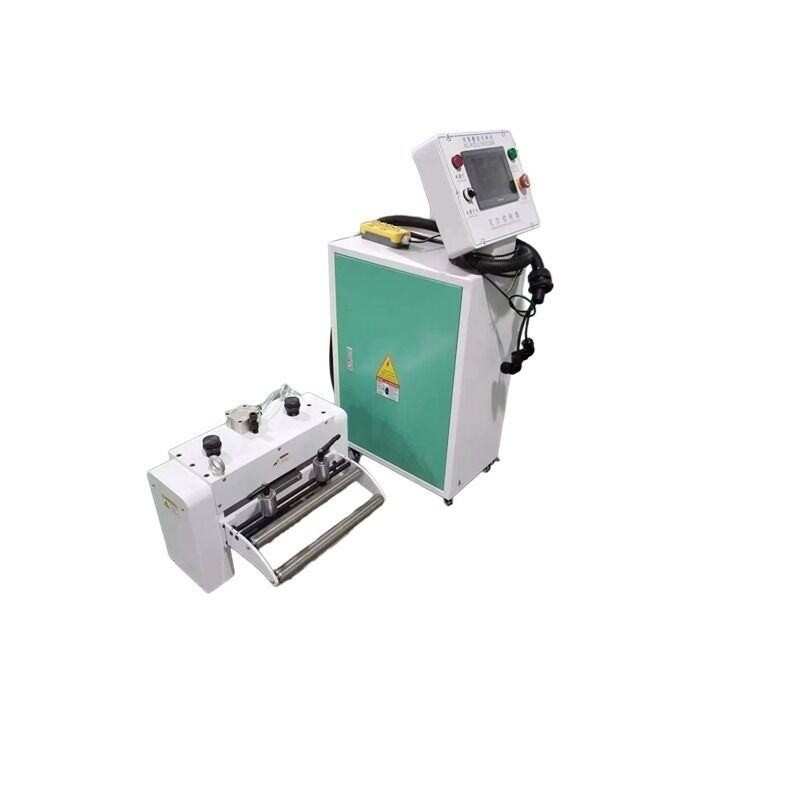

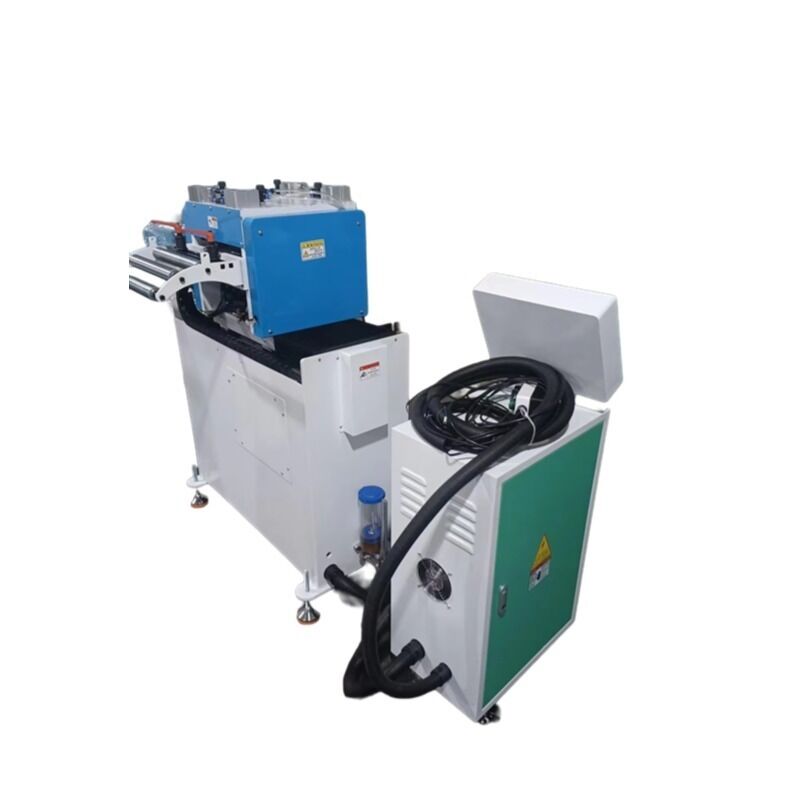

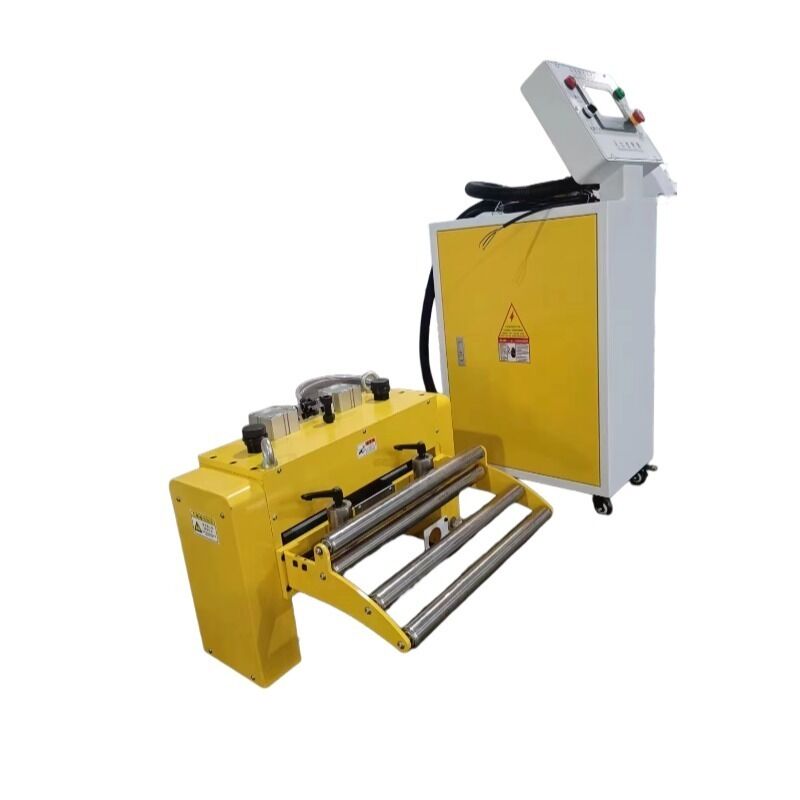

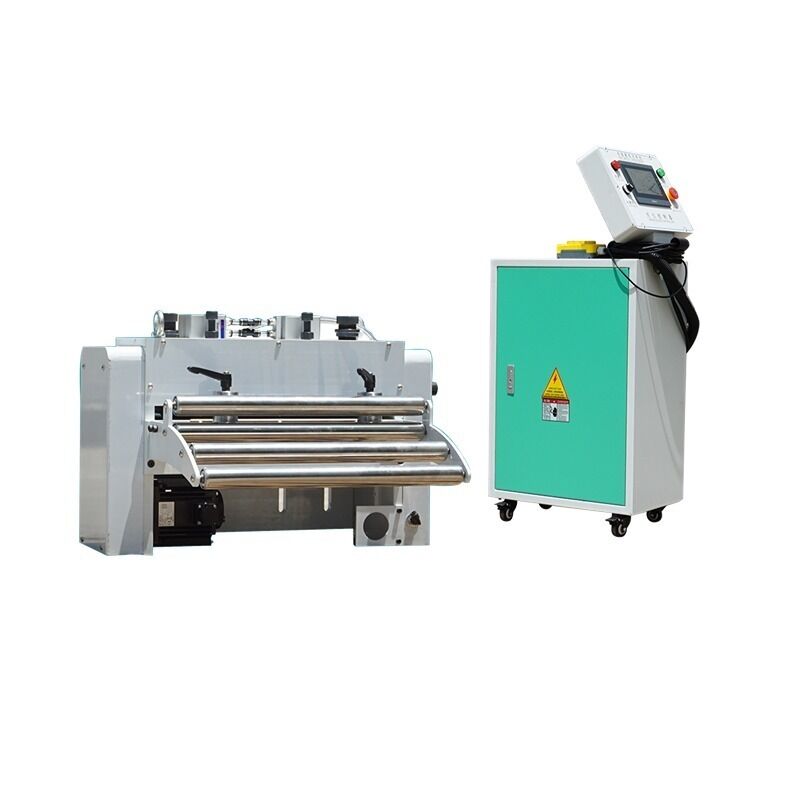

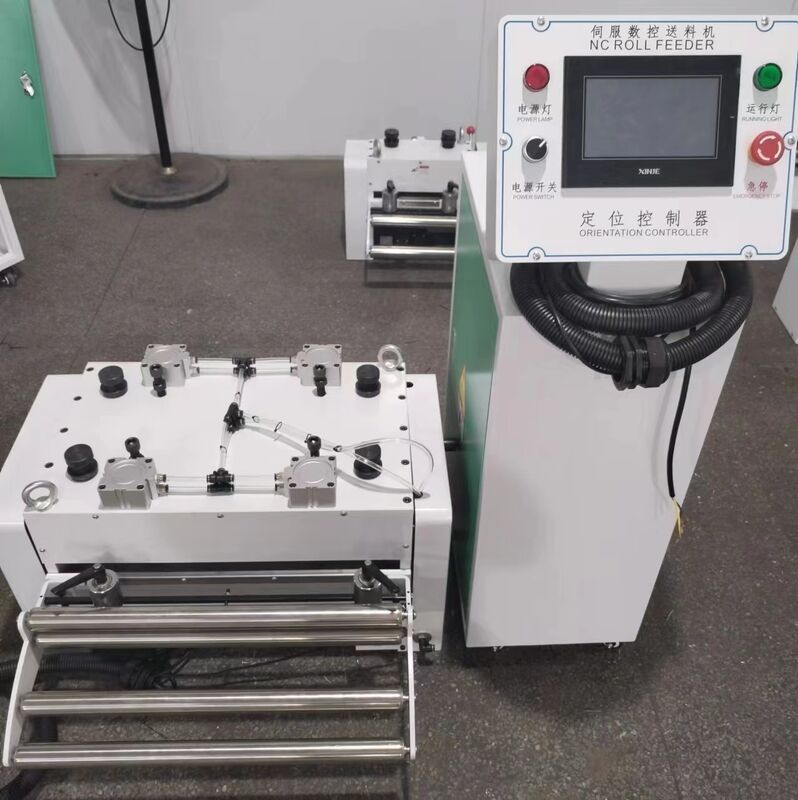

Product Images

Similar Products

Company Profile

Dongguan Qiaosen Machinery Co., Ltd. is a high-tech enterprise integrating R&D, production and sales of high-speed punch presses, precision punch presses, servo punch presses and stamping automation equipment.

We focus on the development trends of high-speed precision punching and automated stamping. Committed to building world-class machines, we continuously innovate to improve product technology and quality. Our products are exported to 37 countries and regions including Europe, Central America, the Middle East and Southeast Asia, serving customers worldwide.

Qiaosen attaches great importance to key core technologies. We constantly introduce advanced equipment and outstanding talents to strengthen our independent R&D capability. With years of industry experience, we recognize that quality is the key to competitiveness. Quality control starts from the R&D stage, combined with precise testing instruments and strict inspection procedures, ensuring that our products are highly recognized by partners.

Our corporate values are integrity, information sharing, professionalism, employee satisfaction and creativity, guiding us to keep up with industry trends and seize opportunities.

Facing the future, Qiaosen is full of confidence. We will continue to invest in talent training and R&D, expand and integrate our product lines, and strive to become one of the leading manufacturers in the stamping industry.

Our precision presses, high-speed presses and servo presses are widely used in metal punching, bending, forming, drawing and embossing processes for:

Communications
Computers
Electronics
Electrical appliances
Automobiles
Medical equipment
Motor stator and rotor

Frequently Asked Questions

Are you the manufacturer? Can we visit your factory?

We are manufacturer and we are located in Wuxi city. Welcome to visit our factory and check our machine quality on spot. Any question will be solved on spot at first time.

What's your main product and what is your main foreign market?

Our main products are punching machine, metal straightening machine, and servo feeder. Our main foreign markets are Asia, North America, Europe, Africa.

What are the advantages of your machines? And how can I believe the quality of your product?

The main configuration uses imported quality products, and our professional product quality inspection team ensures machines are top-quality, precise, and long-lasting. Once tested as qualified, our machines are shipped. The quality of our product is stable and reliable.

Are you able to update the production process information in time after placing our order?

After confirming your order, we keep you updated with production details via emails and photos.

Can we be your agent?

Yes, we are looking for global agents. We help agents improve the market and supply all services including machine technical problems and other after-sales support. Meanwhile, you can get big discounts and commission.

Payment terms?

T/T,

How long is your warranty?

12 months free warranty, life-long maintenance.

Do you accept customer Logo and customized?

We accept various customizations, including logo and machine modifications.
