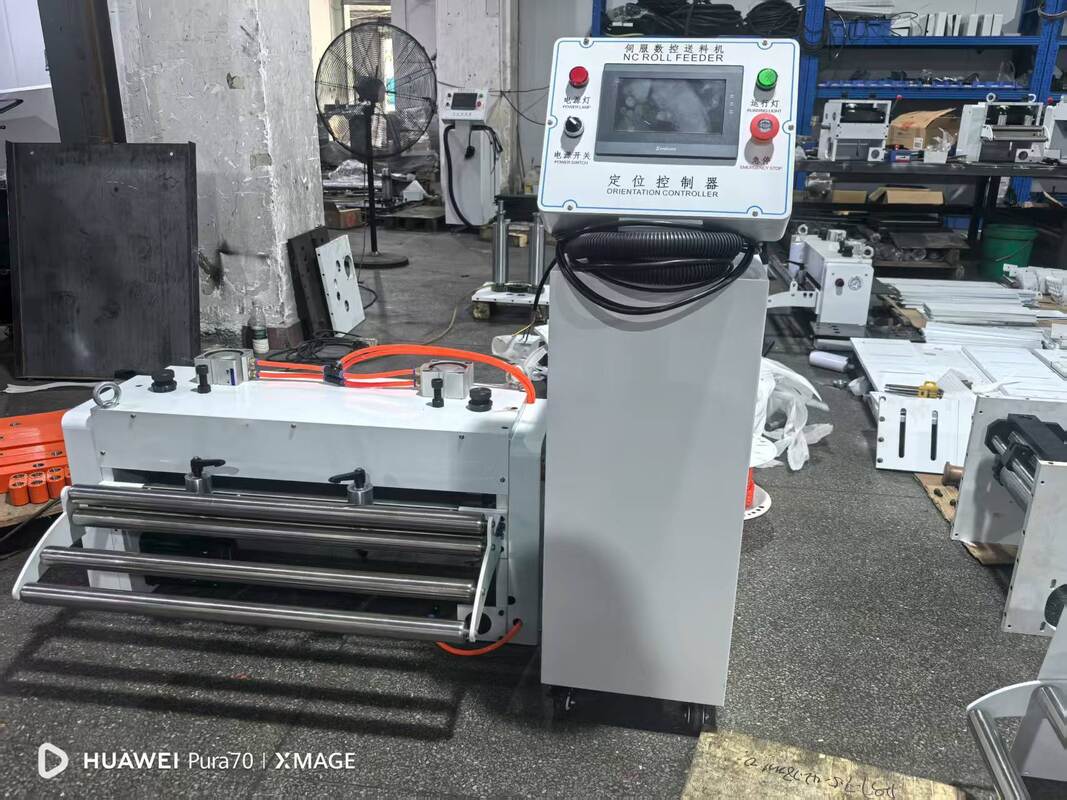

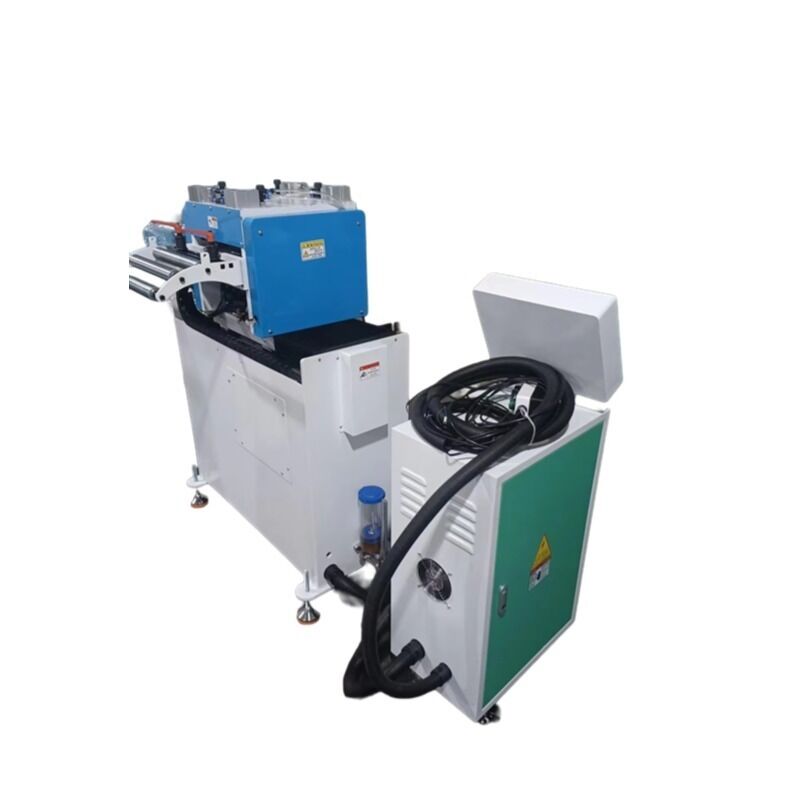

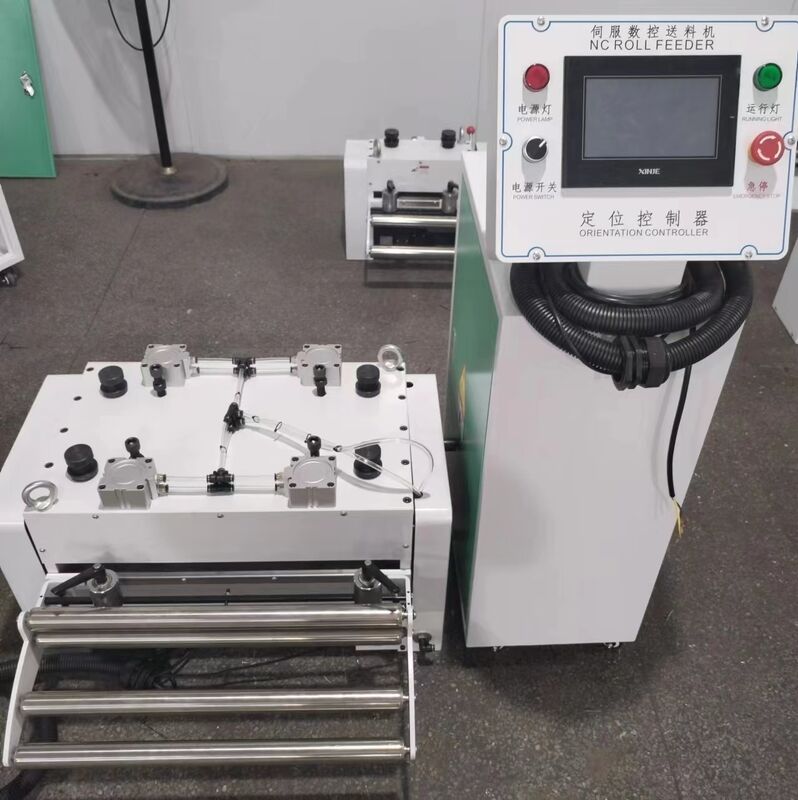

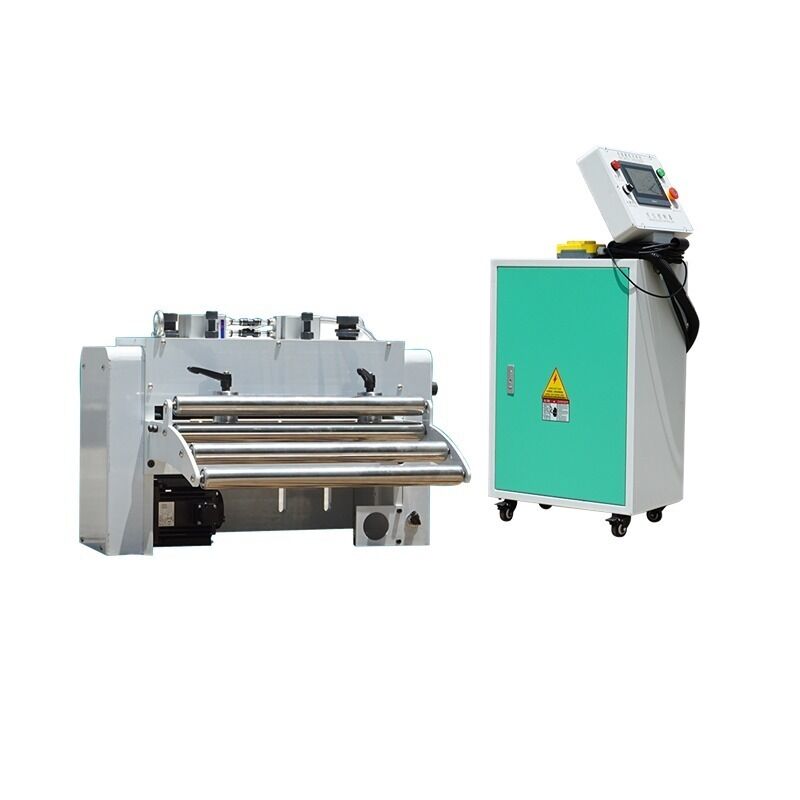

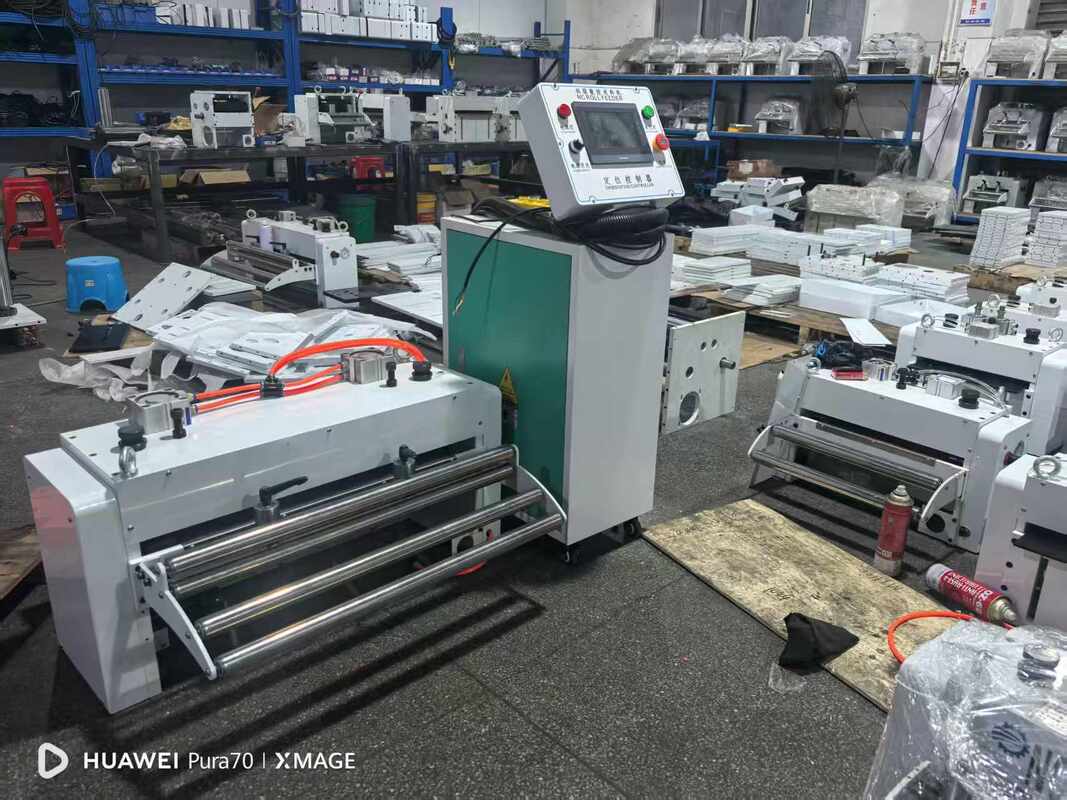

400mm Width Material Servo Roll Feeder with Pneumatic Releasing System

400mm Material Servo Roll Feeder

Pneumatic Releasing Servo Roll Feeder

Pneumatic Releasing Nc Roll Feeder

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Chat Now

Request A Quote

Product Details

Place Of Origin:

Guangdong, China

Type:

Feeder Machine

Use:

Sheet

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Motor

Brand Name:

Qiaosen

Voltage:

380

Power(w):

1500

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Weight (kg):

200

Feeding Speed:

15 M/min

Item Name:

Pneumatic & Mechanical Feeding Straightening Feeder

Keyword:

Straightening Feeder

Width Of Material:

400mm

Thickness Of Material:

Max 3.2mm

Feeding Capacity:

300W*2.3T

Feeding Length:

0.01-9999.99mm

Roll Pressure:

Spring Type

Releasing System:

Pneumatic Type

Pass Line Adjustment:

50mm

Power Supply:

AC380V/3phase

Highlight:

400mm Material Servo Roll Feeder

Pneumatic Releasing Servo Roll Feeder

Pneumatic Releasing Nc Roll Feeder

Payment & Shipping Terms

Minimum Order Quantity

Price

$3,800/cases 1-2 cases

Payment Terms

T/T

Supply Ability

1set 7days

Servo Motor NC Feeder Machine For Metal Sheet Plate Stamping

Chat Now

Servo Motor Metal Sheet Coil Feeder Machine For Metal Stamping Machine

Chat Now

NC-800 Automatic Pneumatic Servo Roll Feeder 800mm for Sheet Metal Coil Strip Punch Press

Chat Now

video

High Precision Feeding Pneumatic Punching Press For Metal Stamping

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

Mechanical Precision Servo Roll Feeder

Servo Roller Feeder Punching Press Automatic Pneumatic & Mechanical Feeding Straightening feeder

Product Specifications

NC-400B NC Servo Roller Feeder

Feeds material for various thicknesses and feeding stroke lengths
Suitable for high-speed feeding and long stroke length feeding
Improves production capacity and feeding precision
User-friendly operation panel for inputting feeding length and speed
Feeding length range: 0.01mm - 9999.99mm
Adopts pneumatic cylinder releasing method, without malfunction
Mechanical releasing method available per customer requirements
High precision feeding: ±0.02mm
Supports 5 sets of different feeding lengths with 999 strokes each
Normal manual running mode with manual speed for easy material feeding
Effective releasing device based on press machine's cam position and material thickness
Touch screen input for feeding length
Hollow feeding roller with HRC60 surface hardness and chrome plating

Structural Features

High-quality servo motor for efficient feeding testing
High-sensitivity encoder for feedback and improved feeding precision
Quality belt system to avoid gear gaps, abrasion, noise, and lubrication needs
Internally mounted motor for protection against damage
