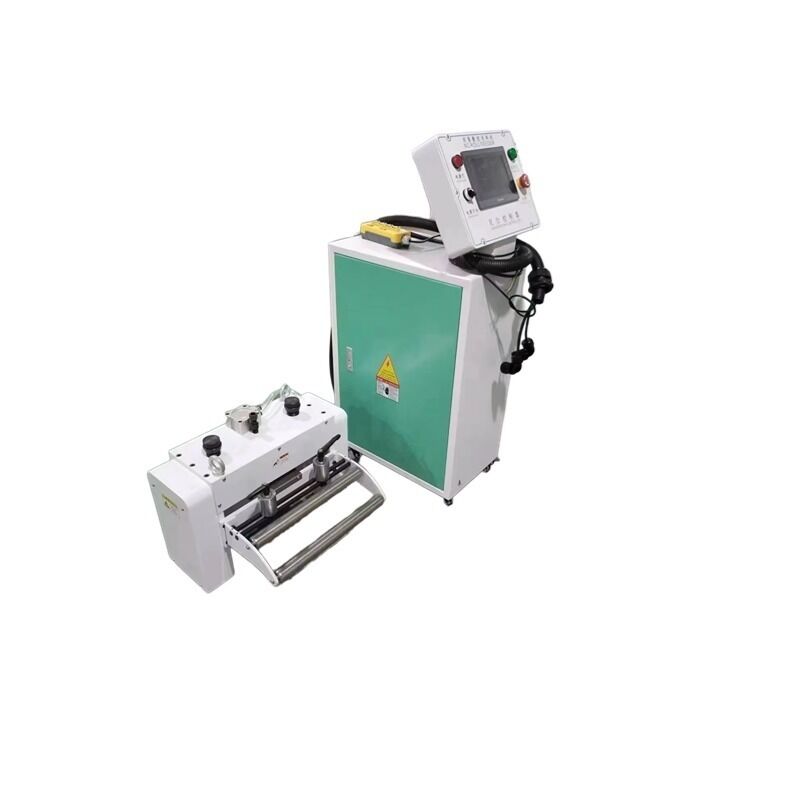

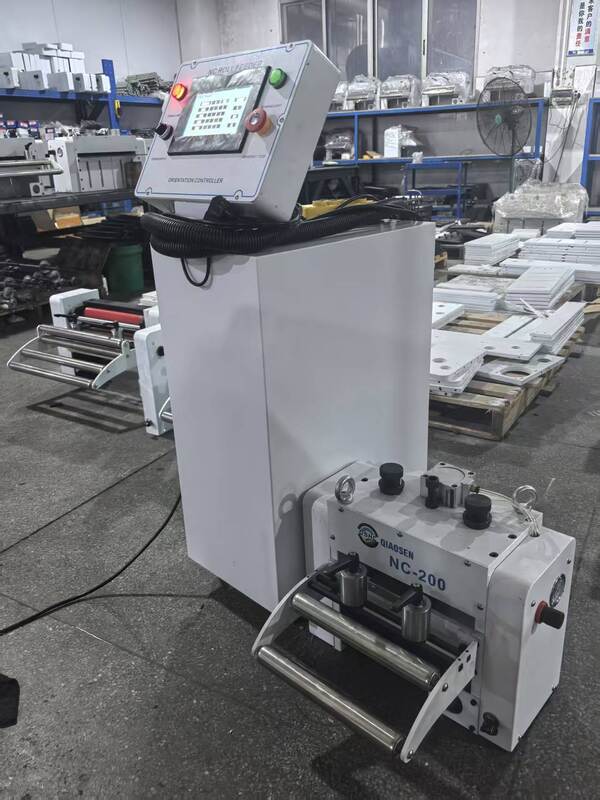

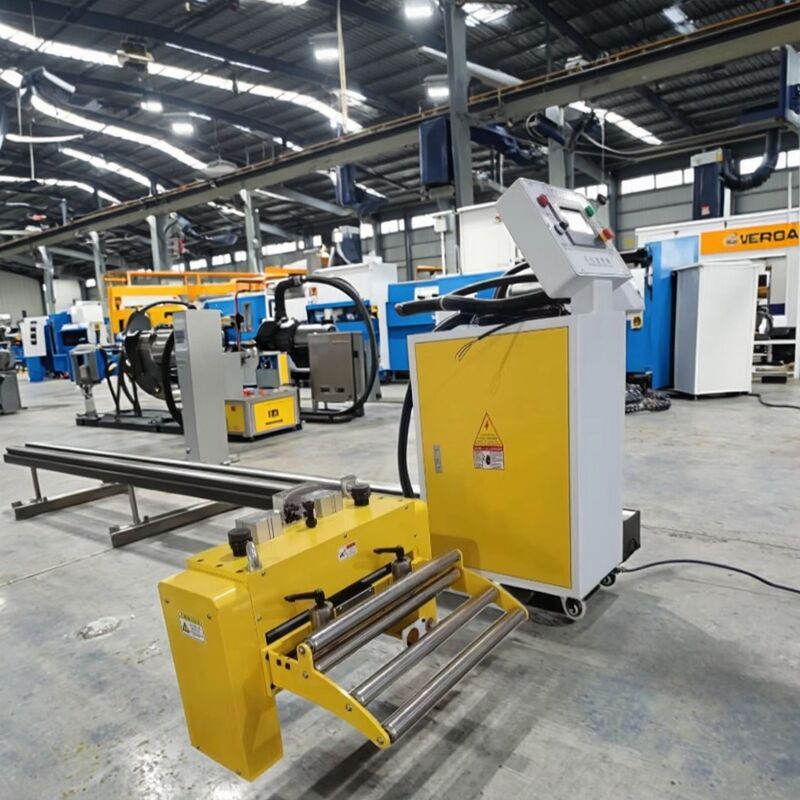

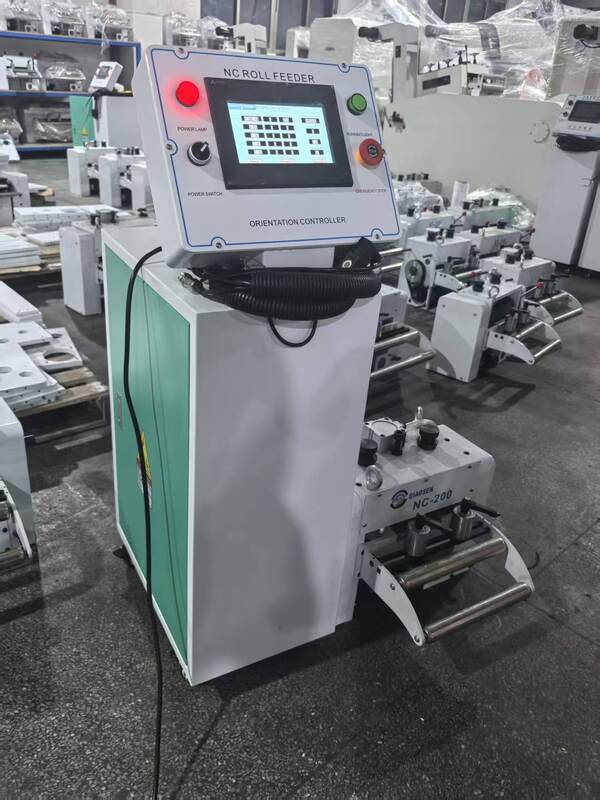

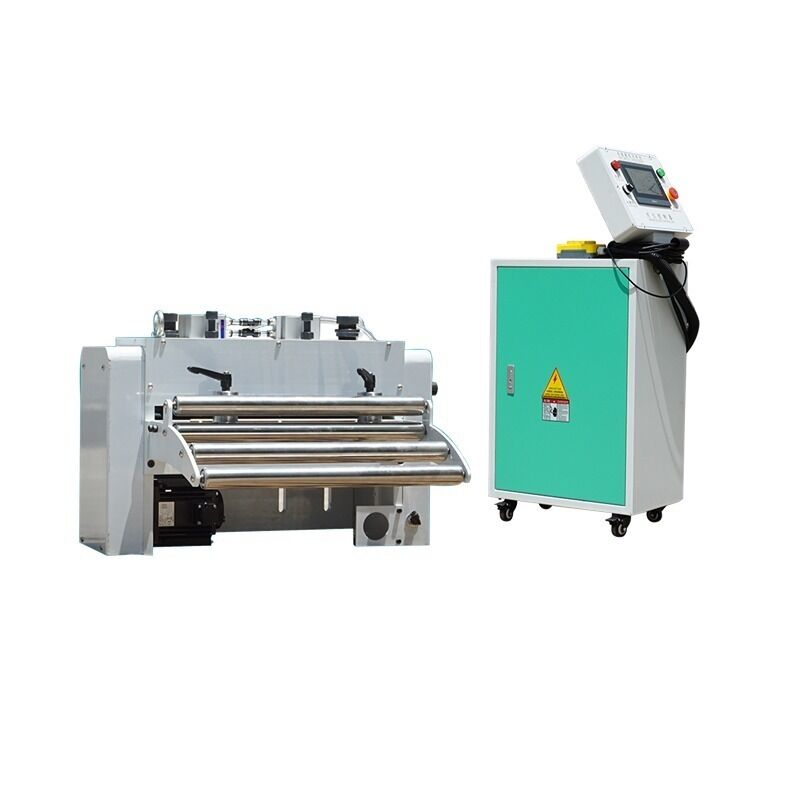

High Precision Nc Servo Roll Feeder Pneumatic Release for Max 3.2mm Thickness Sheet

Pneumatic Release Nc Roll Feeder

3.2mm Sheet Servo Roll Feeder

High Precision Servo Roll Feeder

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Chat Now

Request A Quote

Product Details

Place Of Origin:

Guangdong, China

Type:

Feeder Machine

Use:

Sheet

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Motor

Brand Name:

Qiaosen

Voltage:

380

Power(w):

1500

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Weight (kg):

200

Feeding Speed:

15 M/min

Item Name:

Pneumatic & Mechanical Feeding Straightening Feeder

Keyword:

Straightening Feeder

Width Of Material:

600mm

Thickness Of Material:

Max 3.2mm

Feeding Capacity:

300W*2.3T

Feeding Length:

0.01-9999.99mm

Roll Pressure:

Spring Type

Releasing System:

Pneumatic Type

Pass Line Adjustment:

50mm

Power Supply:

AC380V/3phase

Highlight:

Pneumatic Release Nc Roll Feeder

3.2mm Sheet Servo Roll Feeder

High Precision Servo Roll Feeder

Payment & Shipping Terms

Minimum Order Quantity

Price

$4,186/cases 1-2 cases

Payment Terms

T/T

Supply Ability

1set 7days

Servo Motor NC Feeder Machine For Metal Sheet Plate Stamping

Chat Now

Servo Motor Metal Sheet Coil Feeder Machine For Metal Stamping Machine

Chat Now

NC-800 Automatic Pneumatic Servo Roll Feeder 800mm for Sheet Metal Coil Strip Punch Press

Chat Now

video

High Precision Feeding Pneumatic Punching Press For Metal Stamping

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

NC Servo Pneumatic Roll Feeder for Punching Machine

Servo Roller Feeder Punching Press Automatic Pneumatic & Mechanical Feeding Straightening feeder

Product Specifications

No	Item	Data
1	Width of material	AC380V/3phase
2	Thickness of material	MAX3.2
3	Feeding Capacity	300W2.3T, 803.2T
4	Feeding length	0.01-9999.99
5	Roll pressure	Spring type
6	Releasing system	Pneumatic type
7	Pass line adjustment	50mm

Key Features

Can feed material for various thicknesses and feeding stroke lengths
Suitable for high-speed feeding and long stroke length feeding to improve production capacity and feeding precision
User-friendly operation panel for freely inputting feeding length and speed numbers (range: 0.01mm-9999.99mm)
Pneumatic cylinder releasing method ensures no malfunction
Mechanical releasing method available according to customer requirements
High precision feeding: ±0.02mm
Supports input of 5 sets of different feeding lengths with up to 999 strokes quantity number each
Normal manual running mode with manual speed for easy feeding of steel material to stamping mould
High effective releasing device for roller based on press machine's cam position electronic signal and steel material thickness
Touch screen input for feeding length numbers
Hollow feeding roller with surface hardness HRC60 and chrome plating

Structural Design

High quality servo motor for efficient feeding testing time reduction
High-sensitivity encoder for accurate feedback and improved feeding precision
Quality belt system to avoid gears gap, gear abrasion, noise; requires no lubrication; safe and environmentally friendly
Internally installed motor to avoid possible damages
