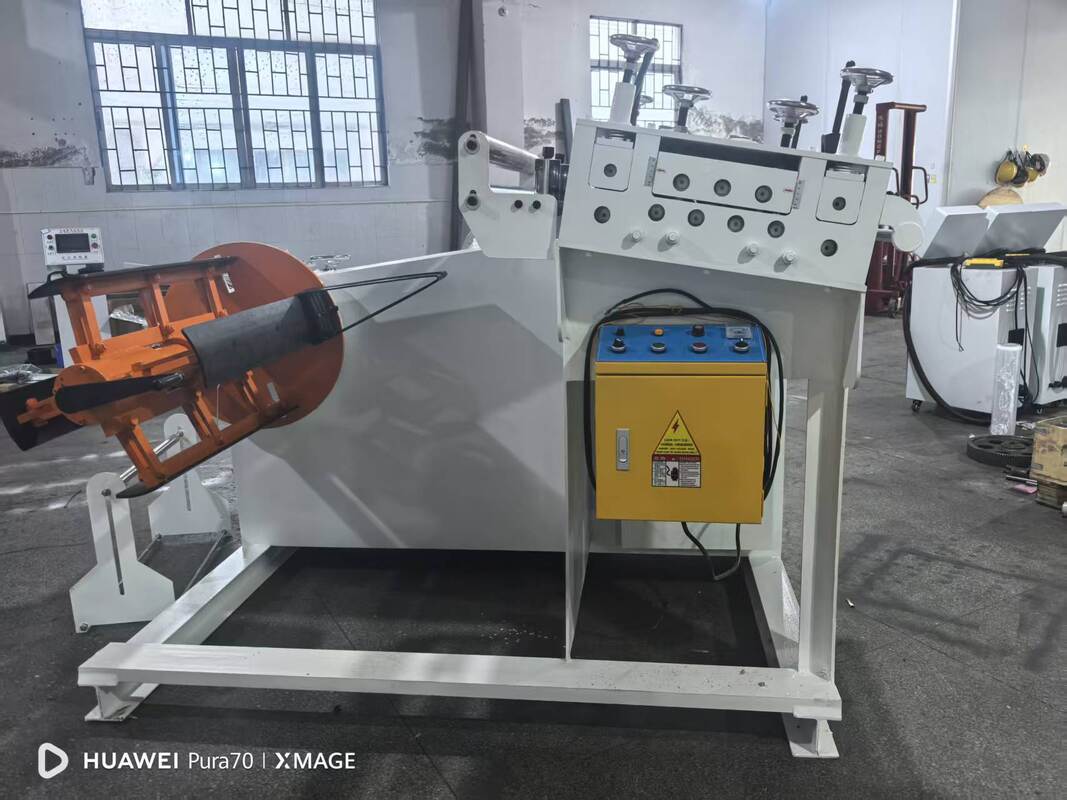

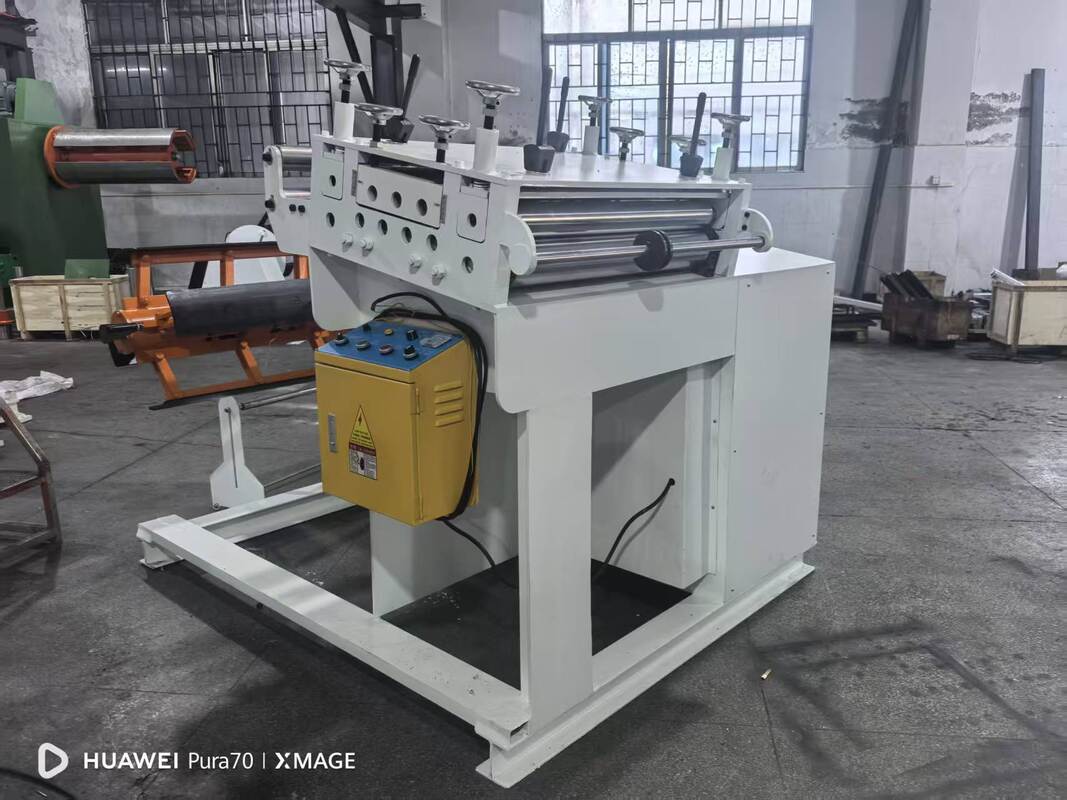

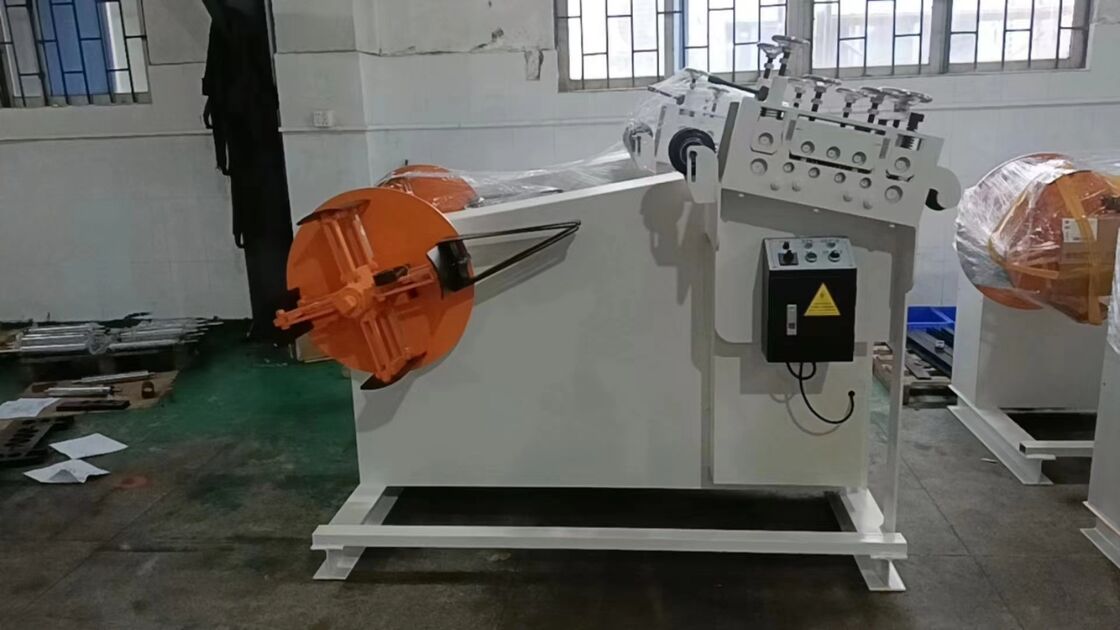

GO500 Two in One Metal Straightening Machine 500mm Width 3.2mm Max Thick 15m/min

GO500 Two in One Metal Straightening Machine 500mm Width 3.2mm Max Thick 15m/min

Two in One Metal Straightening Machine

500mm Width Metal Straightening Machine

3.2mm Max Thick Metal Straightener

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Chat Now
Request A Quote
Product Details
Place Of Origin:
Guangdong, China
Type:
Feeder Machine
Use:
Sheet
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Engine, Bearing, Motor
Brand Name:
Qiaosen
Voltage:
380
Power(w):
1500
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Weight (kg):
1200
Feeding Speed:
15 M/min
Item Name:
Pneumatic & Mechanical Feeding Straightening Feeder
Keyword:
Straightening Feeder
Width Of Material:
500mm
Thickness Of Material:
Max 3.2mm
Material Diameter:
450-530mm
Material Outer Diameter:
1200mm
Material Weight:
2000kg
Correction Speed:
15m/min
Motor HP:
3HP
Expansion Method:
Moves Type
Highlight:

Two in One Metal Straightening Machine

,

500mm Width Metal Straightening Machine

,

3.2mm Max Thick Metal Straightener

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2,966/cases 1-2 cases
Payment Terms
T/T
Supply Ability
1set7day
Product Description
GO500 Two-in-One Durable Efficient Metal Feeder Machine Straightening and Leveling Sheet Machinery
Automatic steel plate sheet decoiler metal material straightening and leveling machine
Product Specifications
No Item Data
1 Width of material 400mm
2 Leveling thickness 0.5-3.2mm
3 Material diameter 450-530mm
4 Material outer diameter 1200mm
5 Material weight 1200kg
6 Correction speed 15m/min
7 Machine weight 1200kg
GO500 Two in One Metal Straightening Machine 500mm Width 3.2mm Max Thick 15m/min 0
Key Features
  • Suitable for the collection and delivery of various coil materials, both thin metal and non-metal materials
  • Motor power can be added to match the feeding device
  • The tension of the brake device can be adjusted, and the main shaft uses a reinforced type to make the material reel rotate more smoothly and increase the load force
  • Indispensable parts for fully automatic production of presses, saving manpower, material resources, reducing costs, and achieving ideal results
  • Imported parts are used, with fewer failures and long life
