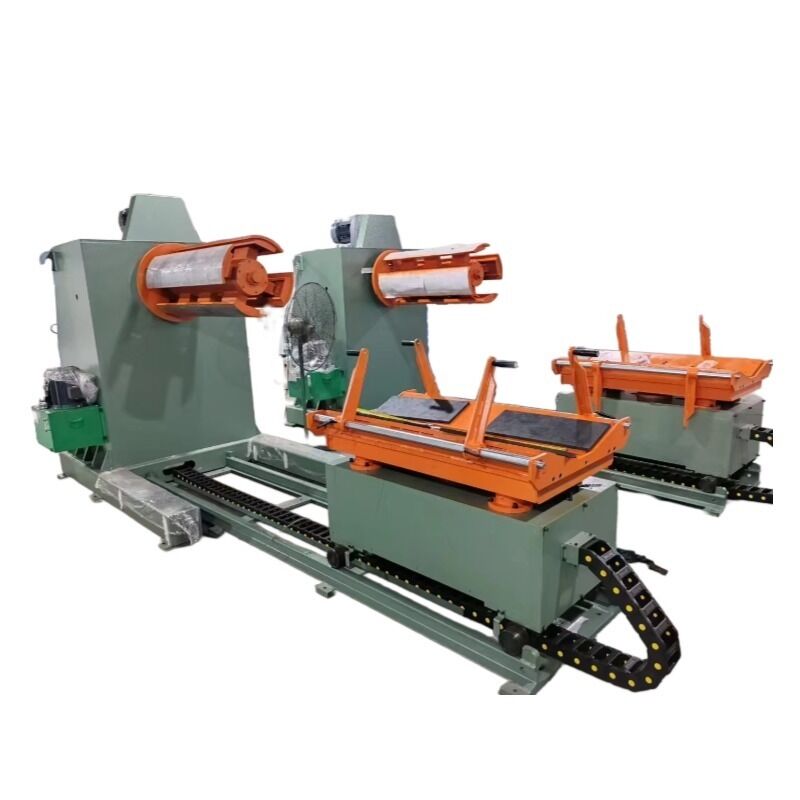

Name: Industrial Metal Material Rack Uncoiler Machine Steel Coil Decoiler With Trolley Car
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: MT-1000
Price: 1.00 USD
Availability: InStock

Home > Products > Uncoiler Machine >

Industrial Metal Material Rack Uncoiler Machine Steel Coil Decoiler With Trolley Car

Material Rack Uncoiler Machine

Trolley Car Steel Coil Decoiler

Industrial Uncoiler Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

MT-1000

Chat Now

Request A Quote

Product Details

Place Of Origin:

Guangdong, China

Type:

Uncoiling Machine

Use:

Sheet

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

Bearing, Motor

Brand Name:

Qiaosen

Voltage:

380

Power(w):

1/2HP

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Weight (kg):

750

Feeding Speed:

Item Name:

Pneumatic & Mechanical Feeding Straightening Feeder

Keyword:

Uncoiling Machine

Width Of Material:

1000mm For Decoiler Machine

Thickness Of Material:

0-1.6mm For Decoiling Machine

Speed Reducer:

1/60

Motor HP:

Max Material Weight:

5000kg For Material Rack

Coil Intside Diameter:

300/460mm

Coil Outside Diameter:

1400mm

Machine Weight:

750kg

Highlight:

Material Rack Uncoiler Machine

Trolley Car Steel Coil Decoiler

Industrial Uncoiler Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

$1,200/cases 1-4 cases

Packaging Details

WOODEN BOX

Delivery Time

15-25

Payment Terms

T/T

Supply Ability

100SET per month

MT-F Heavy Duty Uncoiler Machine With Manual Hydraulic Expansion Spindle

Chat Now

video

Automatic Uncoiler Machine with 15m/min Feeding Speed and Hydraulic/Electric Drive for Steel Coil Processing

Chat Now

0.1-3.0mm Metal Coil Uncoiler Machine Automatic with Rubber Covered Roller

Chat Now

2in1 Steel Coil Uncoiler Leveler Decoiler Straightener with Steel Frame CNC/PLC Control

Chat Now

+8618103059517

tina_07@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

PRODUCT SPECIFICATIONS

No	Item	MT-200	MT-300	MT-400	MT-500	MT-600
1	Width of material	200mm	300mm	400mm	500mm	600mm
2	Thickness of material	0-1.6	0-3.0	0-3.0	0-3.0	0-3.0
3	Speed reducer	1/60	1/60	1/60	1/60	1/60
4	Motor HP	1	1	1	1	1
5	Coil outside diameter	1200mm	1200mm	1200mm	1200mm	1200mm
6	Coil inside diameter	300/460mm	450/530mm	450/530mm	450/530mm	450/530mm
7	Max material weight	500mm	1000mm	2000mm	2000mm	2000mm
8	Machine weight	320kg	372kg	450kg	450kg	450kg

Feature

Suitable for the collection and delivery of various coil materials, both thin metal and non-metal materials
Motor power can be added to match the feeding device
The tension of the brake device can be adjusted, and the main shaft uses a reinforced type to make the material reel rotate more smoothly and increase the load force
Indispensable parts for fully automatic production of presses, saving manpower, material resources, reducing costs, and achieving ideal results
Imported parts are used, with fewer failures and long life
