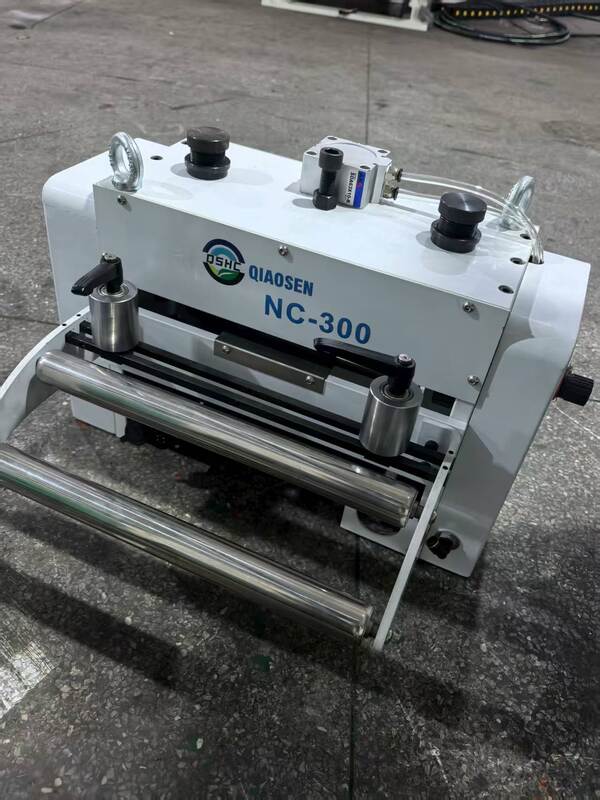

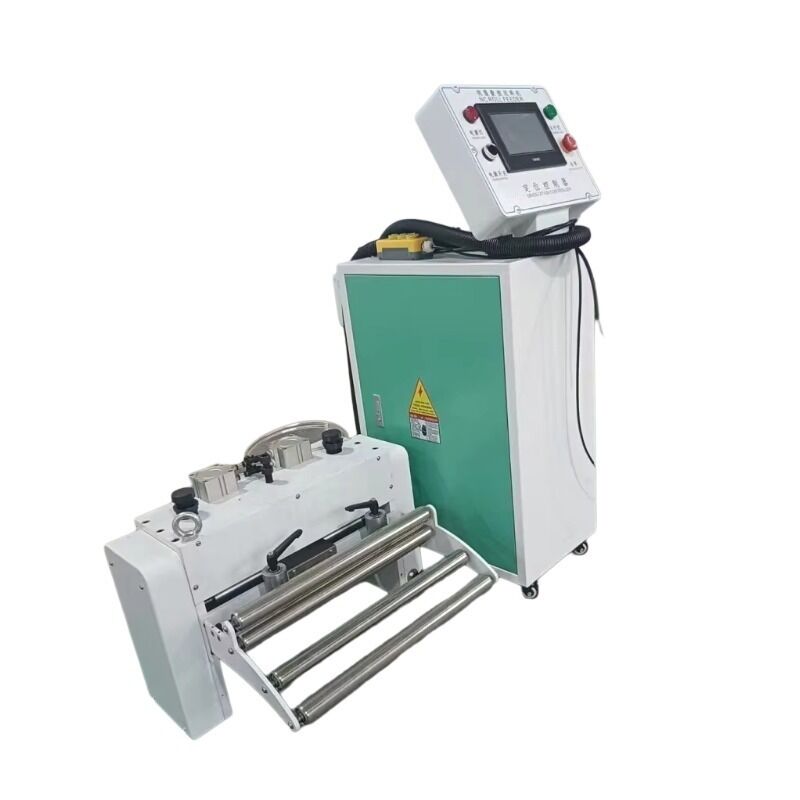

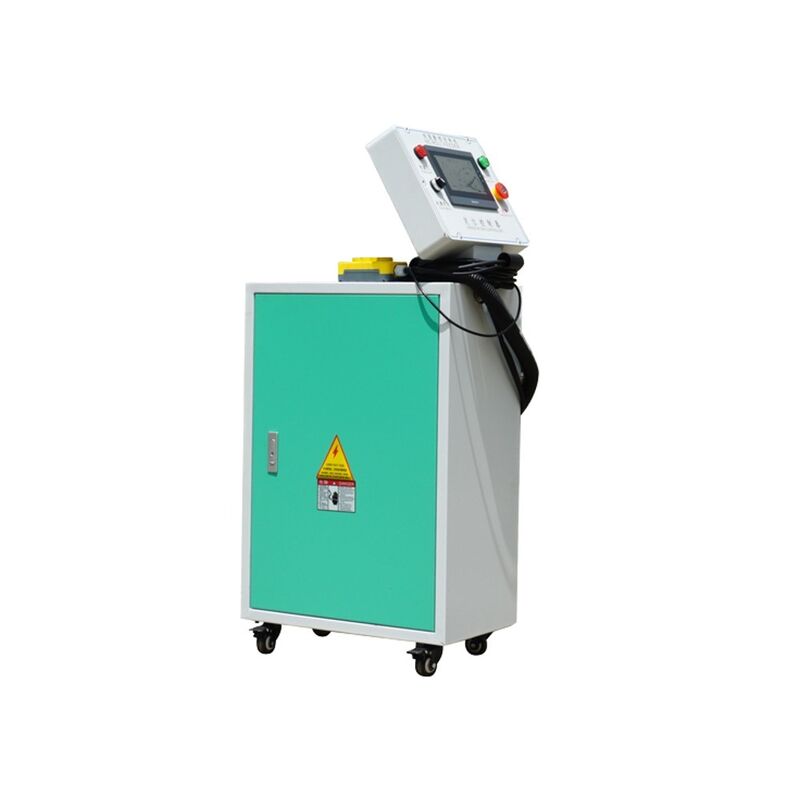

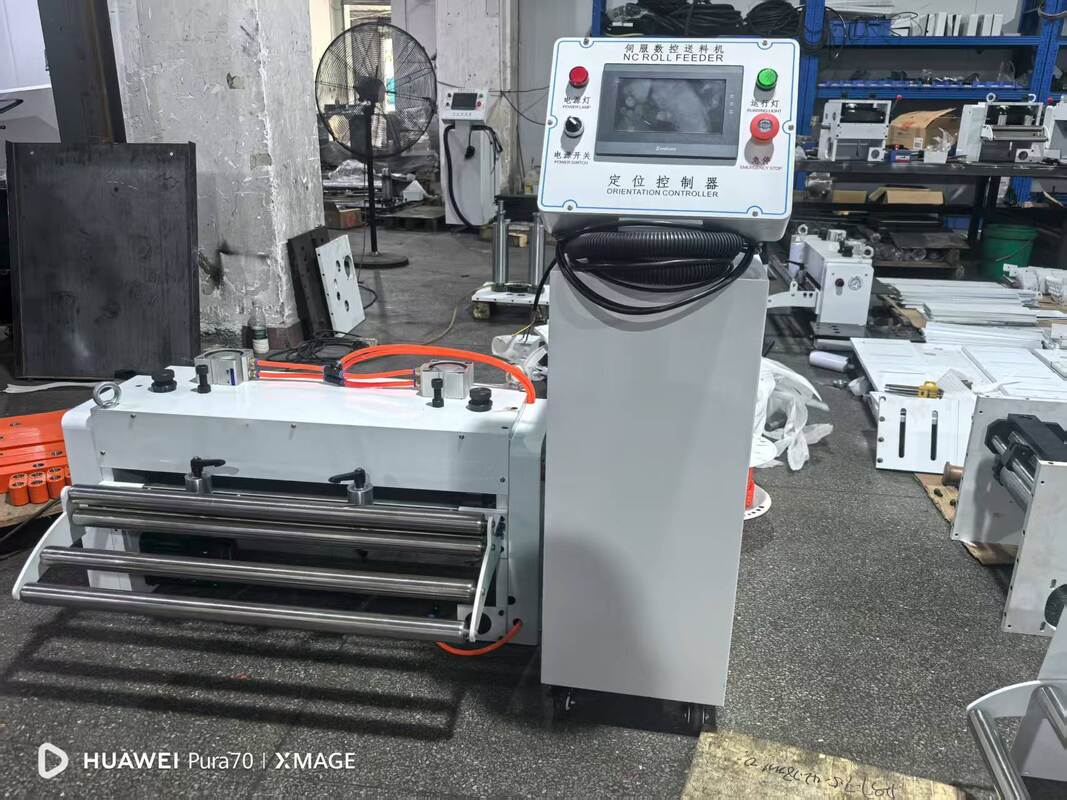

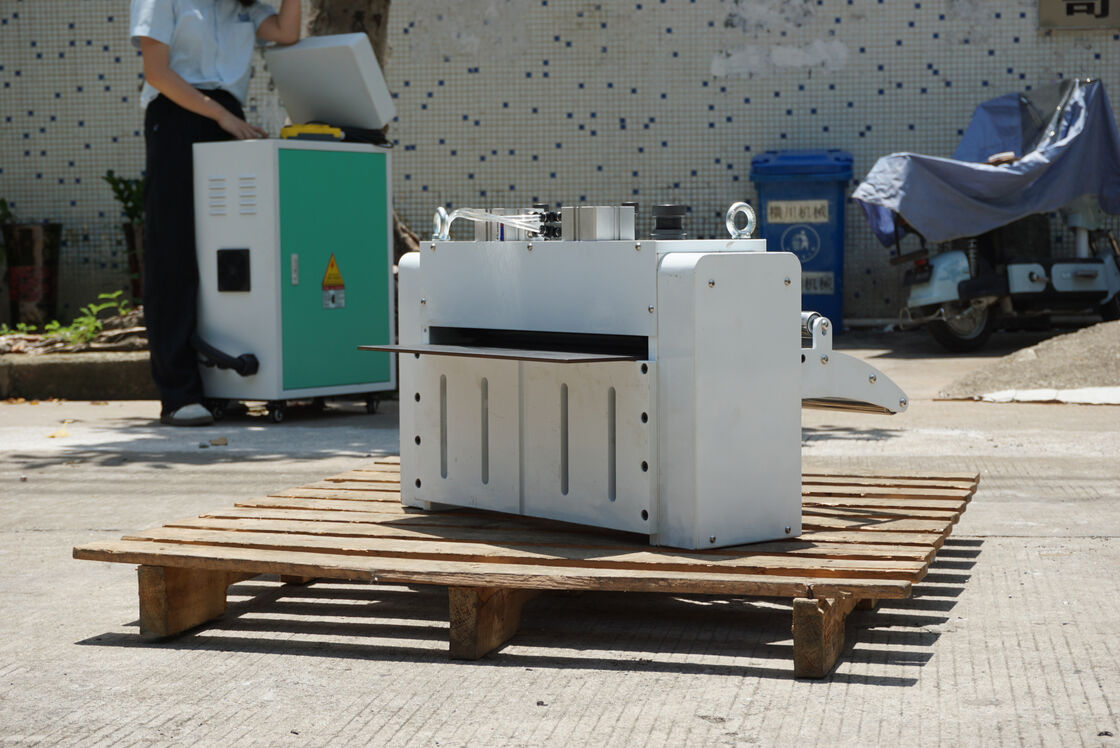

Servo Motor NC Feeder Machine For Metal Sheet Plate Stamping

Feature:

• It can feed material for various thicknesses and feeding stroke length.
• It suits for high speed feeding, long stroke length feeding, to improve production capacity and feeding precision.
• With a good operation panel, so users can input feeding length number, feeding speed number freely. Feeding length range is 0.01mm-9999.99mm.
• It adopts pneumatic cylinder releasing method, without malfunction.
• Mechanical releasing method can be made according to customers requirement.
• High precision feeding, ±0.02mm
• User can input 5 sets of different feeding length. For each length, user can input 999 strokes quantity number.
• User can use this feeder, under normal manual running mode, with normal manual speed. It is easy to feed steel material to stamping mould easily for user.
• Releasing device for a roller is high effective, as per press machine’s cam position electronic signal, and steel material thickness.

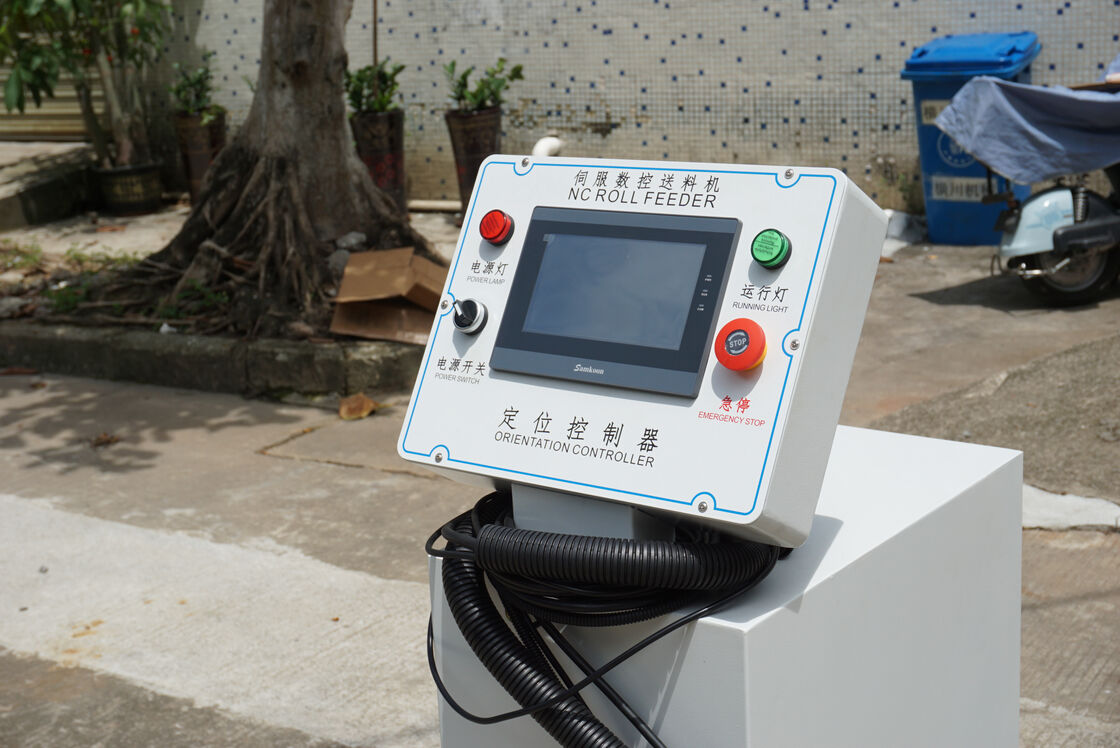

• User inputs feeding length number at a touch screen by finger, feeder can feed steel material to reach that length.
• Feeding roller is hollow, surface hardness is HRC60, with chrome plating.

Structure:

• It adopts high quality servo motor, so can shorten time of feeding testing efficiently.
• It adopts high-sensitivity encoder, to ensure feedback and improve feeding precision.
• It adopts good belt, to avoid gears gap, to avoid gear abrasion, without noise, without lubrication, safe, environmental.
• Motor is installed in its structure internally, to avoid possible damages
