Automatic NC Coil Servo Feeder Machine - High Quality Feeding Line
Advanced servo-controlled feeding system designed for precision material handling in industrial stamping and punching operations.
Product Specifications
Product Overview
Available in multiple widths and color options to suit various production requirements.

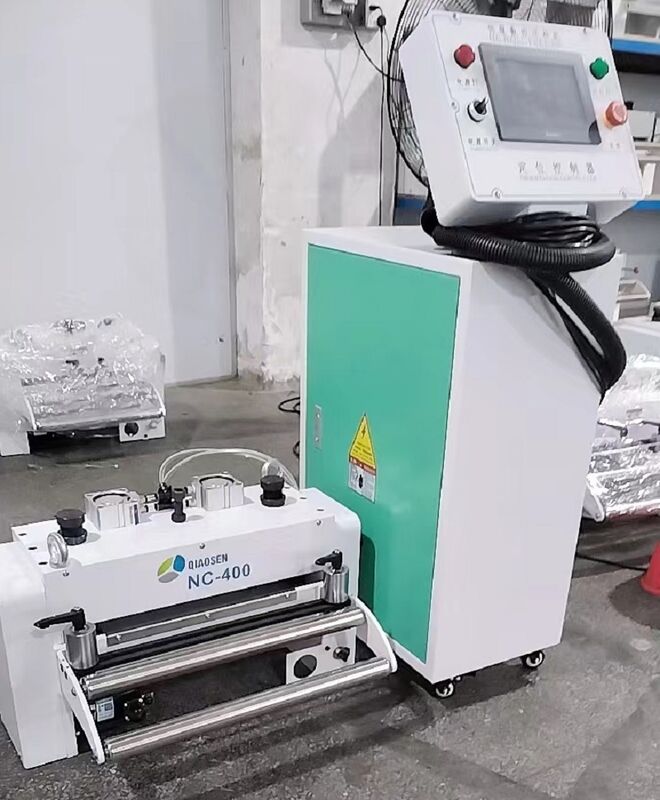

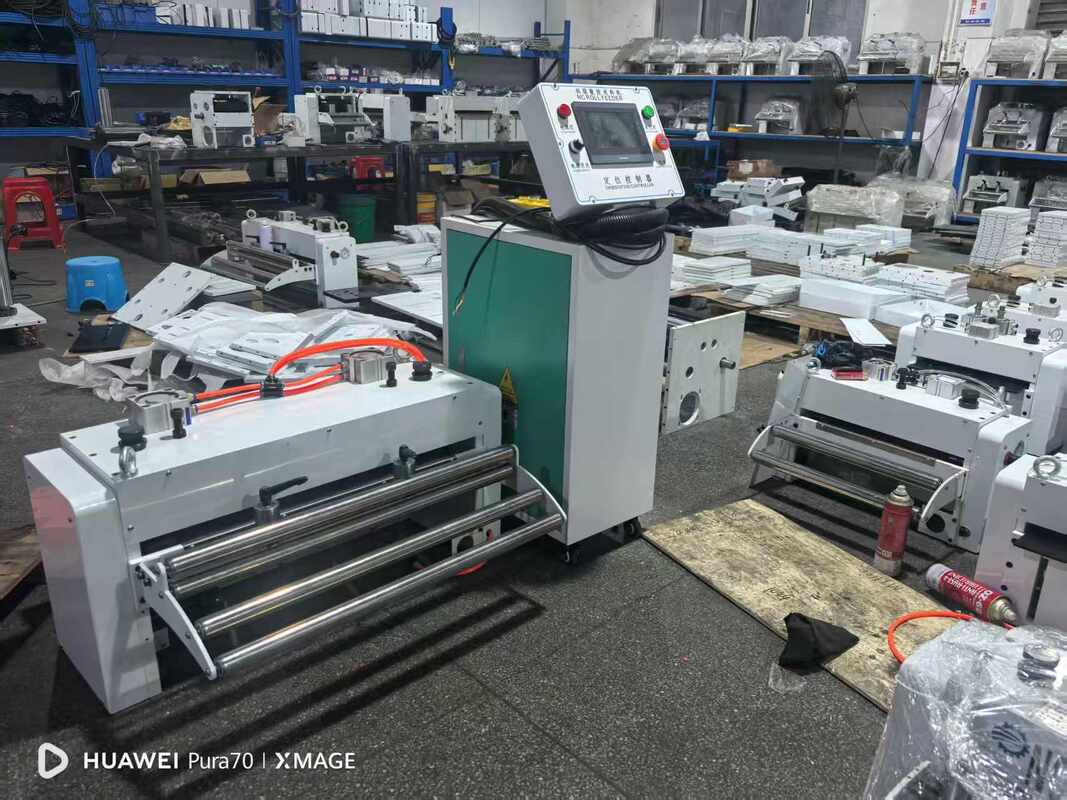

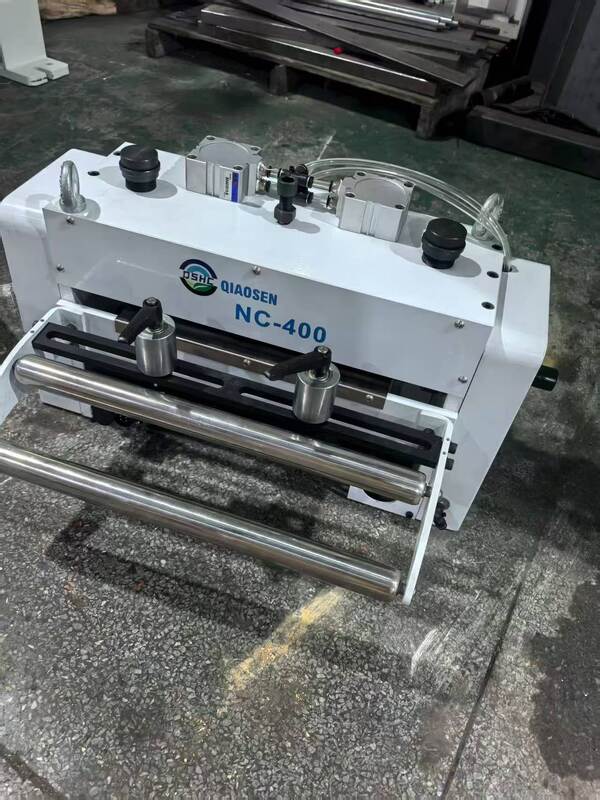

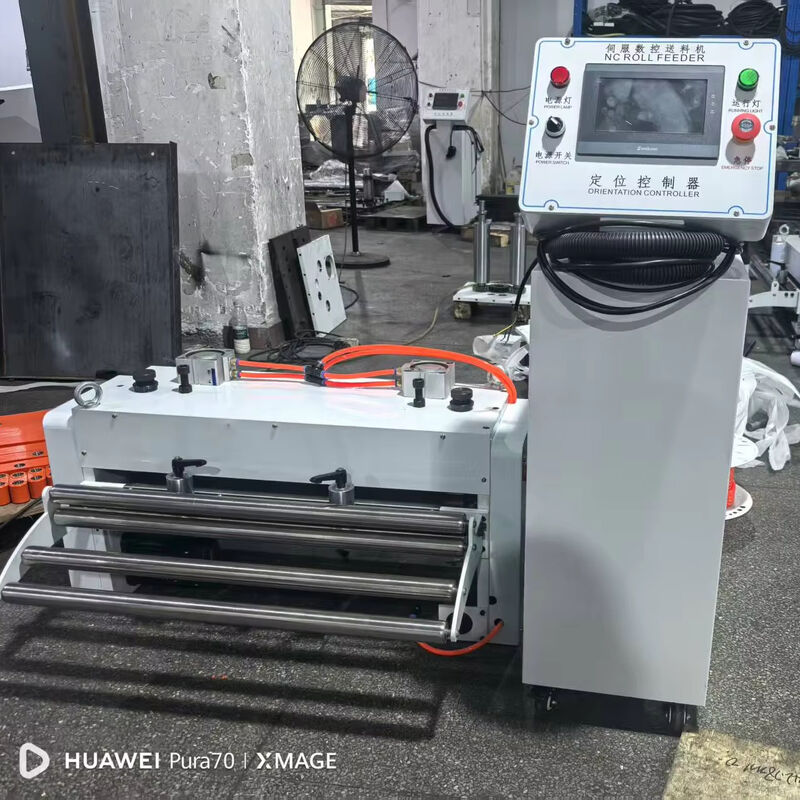

NC Servo Roller Feeder Models: NC-200/300/400/500/600/800/1000/1300B
- Handles materials of various thicknesses with adjustable feeding stroke length
- Optimized for high-speed feeding and long stroke operations to enhance production capacity and precision
- User-friendly operation panel for easy input of feeding length (0.01mm-9999.99mm) and speed parameters
- Pneumatic cylinder releasing mechanism ensures reliable operation without malfunctions
- Optional mechanical releasing method available per customer requirements
- High precision feeding accuracy: ±0.02mm
- Supports programming of 5 different feeding lengths with up to 999 strokes per length
- Manual running mode with adjustable speed for easy material feeding to stamping molds
- Effective releasing device synchronized with press machine's cam position and material thickness
- Touch screen interface for intuitive length input and control
- Hollow feeding rollers with HRC60 surface hardness and chrome plating for durability
Operation Guide
- In manual mode, feed material using the switch controlling pneumatic clamping cylinders and feed motor
- Perform control run to reset encoder values
- Set required cutting length and workpiece quantity
- Activate automatic mode to begin production according to programmed parameters
- Machine automatically stops after completing the batch and returns to manual mode for next operation
Manufacturing Facility
Dongguan Qiaosen Machinery Co., Ltd operates from our manufacturing facility in Jiangsu province, established in 2016. Strategically located near Shanghai with excellent transportation access, we specialize in innovative industrial machinery solutions. Our factory maintains ISO9001:2008 quality management certification and produces hydraulic press machines ranging from 10 to 2000 tons across 8 series with over 100 models. Our product portfolio includes single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines serving aerospace, automotive, shipbuilding, appliance manufacturing, and hardware industries. We are recognized for our design excellence, competitive pricing, superior quality, and comprehensive technical support, with distribution across 20+ domestic regions and exports to United States, Japan, Russia, European Union, Southeast Asia, and Middle Eastern markets.
Warranty & Service Support
Comprehensive One-Year Warranty covering entire feeder/uncoiler/straightener machine systems
Complete Spare Parts Availability with lifetime service support and preferential pricing post-warranty
International Brand Components for easy electrical parts sourcing and replacement
Technical Support via email, phone, or video consultation
On-Site Engineering Services available for installation, training, and maintenance
English Documentation including operation and maintenance manuals
Certificate of Conformity provided with all equipment
Frequently Asked Questions
Company Background
Our manufacturing facility is located in Wuxi, China with a branch in Dongguan, operating since 2016. We serve global markets including Southeast Asia (50%), Middle East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%) with a workforce of 51-100 professionals.
Why Choose Our Products?
We combine powerful R&D capabilities with manufacturing excellence, ensuring customer satisfaction through innovative solutions and worldwide service network support.
Product Range
Our comprehensive product line includes stamping presses, feeders, straightening machines, uncoilers, and custom molds for various industrial applications.
Delivery Timeline
Standard delivery period is 25-40 working days following receipt of advance payment.
After-Sales Support
Our dedicated technical and quality teams provide continuous support to address any operational requirements.
Language Customization
Touch screen interfaces can be customized to multiple languages including Spanish, French, and others upon request.
