Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE / ISO14001
Model Number:

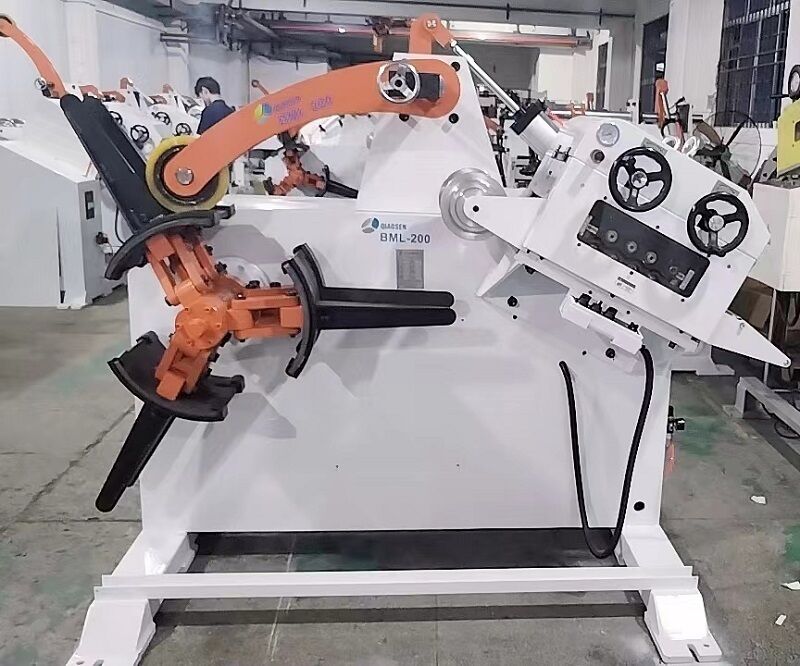

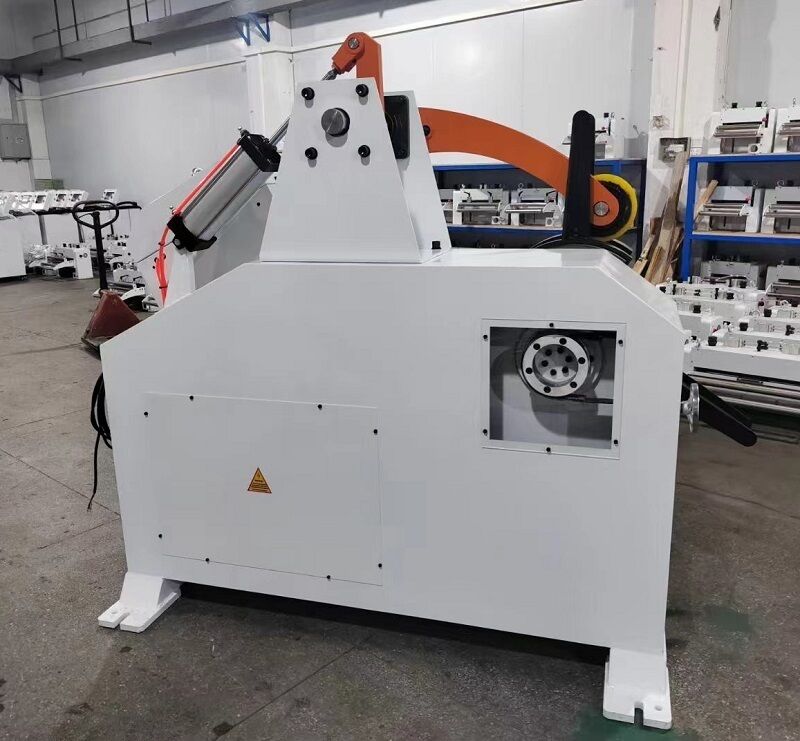

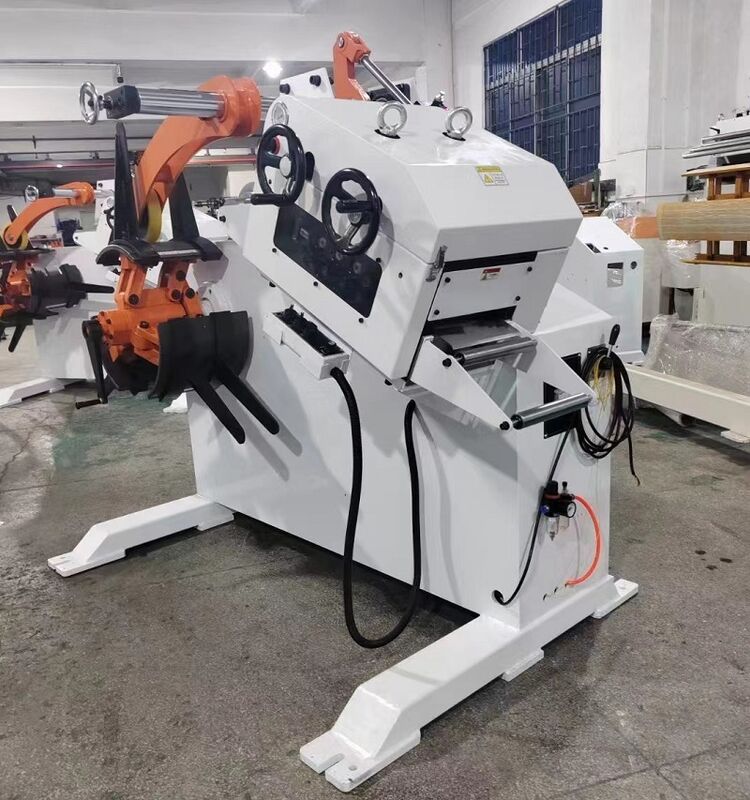

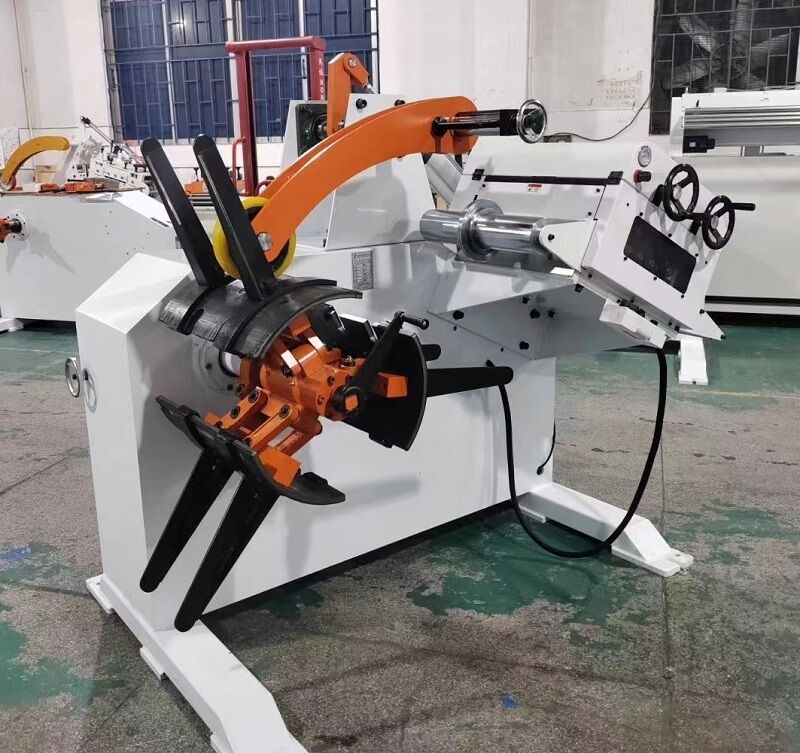

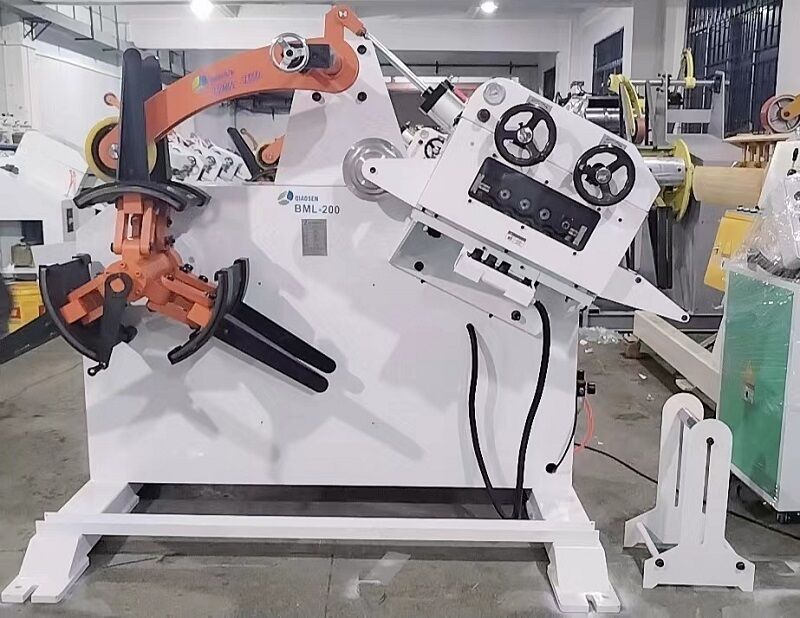

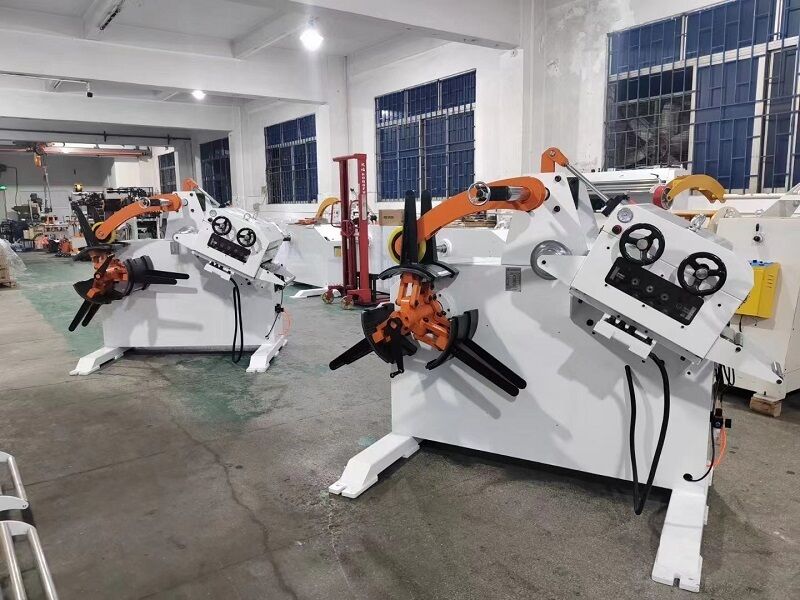

BML-200
You can find the suitable machine (Material width from 10-1500mm), Any question , please contact us!
| Item | BML-200 | BML-300 | BML-400 | BML-500 | BML-600 | BML-700 |
|---|---|---|---|---|---|---|
| Width of material | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm |
| Thickness of material | 0.3-3.2mm | 0.3-3.2mm | 0.3-3.2mm | 0.3-3.2mm | 0.3-3.2mm | 0.3-3.2mm |
| Coil outside diameter | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm |
| Coil inside diameter | 470-530mm | 470-530mm | 470-530mm | 470-530mm | 470-530mm | 470-530mm |
| Rack load | 800kg | 1000kg | 1200kg | 2000kg | 2500kg | 2500kg |
| Expansion method | 16m/min | 16m/min | 16m/min | 16m/min | 16m/min | 16m/min |
| Correction speed | Manual | Manual | Manual | Manual | Manual | Manual |
| Machine weight | 1000kg | 1100kg | 1200kg | 1400kg | 1600kg | 1800kg |
| Machine size | 2*1.4*1.4m | 2.1*1.5*1.5m | 2.2*1.6*1.6m | 2.3*1.7*1.7m | 2.4*1.8*1.8m | 2.5*1.9*1.9m |
Dongguan Qiaosen Machinery Co.,Ltd which have our own factory located in Jiangsu province, established in 2016,Closed to shanghai city and transportation is very convenient, a birth place of creative minds and gifted talents. Our factory took the lead in passed authentication of the ISO9001:2008 quality management system . A factory specialized in the production of pneumatic press machine. Mainly products 25 tons to 1600 tons press machine with 8 series, have more than 100 types, link single column, four column, c frame, h frame and all kinds of press machine, punching machine, folding machine, cutting machine, is used in aviation, space flight, automobile, ship, light appliance, daily used hardware and so on. All along, the company products with exquisite design, reasonable price, excellent quality and efficient after-sales service and technical support, received the affirmation of customers at home and abroad, sell well in more than 20 domestic provinces, cities and districts, and exported to United States, Japan, Russia, European Union, southeast Asia, the Middle East and other countries.
Q: Are you manufacturer?
A: Yes, we are manufacturer for more than ten years.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
