Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE / ISO14001
Model Number:

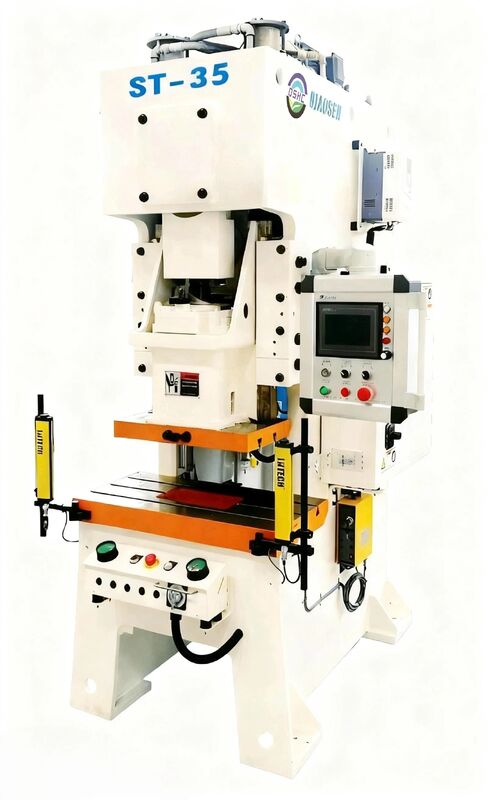

ST-35V
| Product Name | Punching Machine |
|---|---|
| Model | ST-35V |
| Impact Force Location | 3.2mm |
| Slider Strokes Per Minute | 40-120 SPM |
| Slider Stroke Length | 70mm |
| Die Shut Height | 220mm |
| Slider Adjustment Amount | 55mm |
| Upper Platform Area | 520×250×50mm |
| Lower Platform Area | 800×400×70mm |
| Shank Hole | Ø38.1 |
| Main Motor Power | 3.7×4kW×P |
| Slider Adjustment Device | Manual Operation |
| Air Pressure | 6kg/cm² |
| Punch Precision Level | JIS 1 |
| Overall Dimensions | 1280×900×2200mm |
Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province near Shanghai with convenient transportation access. Our factory was among the first to achieve ISO9001:2008 quality management system certification.
We specialize in hydraulic press machine production, offering 10-ton to 2000-ton press machines across 8 series with over 100 types including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines. Our equipment serves aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries.
Our products are recognized for exquisite design, competitive pricing, excellent quality, and efficient after-sales service with technical support. We serve over 20 domestic provinces and export to the United States, Japan, Russia, European Union, Southeast Asia, Middle East, and other countries.
Who are we?
Our factory is located in Wuxi, China with a branch company in Dongguan, starting from 2016. We sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.
Why select us?
We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
Our technical and quality team will support you any time if you need us.
Can I do different color machine?
Yes, we can customize your own colors to match your production line.
Can the touch screen board language change to others?
Yes, we can do it according to your requirement like Spanish, French etc.
