Industrial Sheet Leveler Machine with 9 Leveling Hoops Electronic Straightening Adjustment

Industrial Sheet Leveler Machine with 9 Leveling Hoops Electronic Straightening Adjustment

Industrial Sheet Metal Leveling Machine

9 Leveling Hoops Leveler Machine

Electronic Straightening Adjustment Leveler Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

HCK4-600S

Chat Now
Request A Quote
Product Details
Coil I.D(mm):
508
Coil O.D(mm):
1400
Max Speed(mm):
16
Feeding Accuracy(mm):
±0.15
Correction Roll(mm):
Upper 5/lower 4
Feeding Roll(set):
1
Back Pressure Roll(set):
Provided
Highlight:

Industrial Sheet Metal Leveling Machine

,

9 Leveling Hoops Leveler Machine

,

Electronic Straightening Adjustment Leveler Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$56,000/cases 1-4 cases
Packaging Details
WOODEN BOX
Delivery Time
25-60
Payment Terms
T/T
Supply Ability
100SET per month
Product Description
PRODUCT SPECIFICATIONS
Model
HCK4-600S
HCK4-800S
HCK4-1000S
HCK4-1300S
Coil width(mm)
70-600
70-800
70-1000
70-1300
Coil thickness(mm)
0.6-6.0
Max coil weight(kg)
5000
5000
7000
10000
Coil I.D(mm)
508
Coil O.D(mm)
1400
Max speed(mm)
16
Feeding accuracy(mm)
±0.15
Correction roll(mm)
Upper 5/lower 4
Feeding roll(set)
1
Back pressure roll(set)
provided
Feeding line height(mm)
1200±100
Power supply
AC220V 50HZ/AC380V 50HZ
Uncoiler expansion method(mm)
hydraulic
Air pressure(kg/cm^2)
5
Servo motor(kw)
AC22
Uncoiler motor(kw)
2.2
2.2
3.7
7.5
Feature:

1.Uses 9 leveling hoops,Effective enhances the material to rectify the even precision.
2.Electronic Straightening Adjustment: The NLF series features an automatic system for straightening adjustment,unlike previous models.Which adjusted straightening with manual wheels.The new electronic straightening system is easytouse and allows for faster setting up.

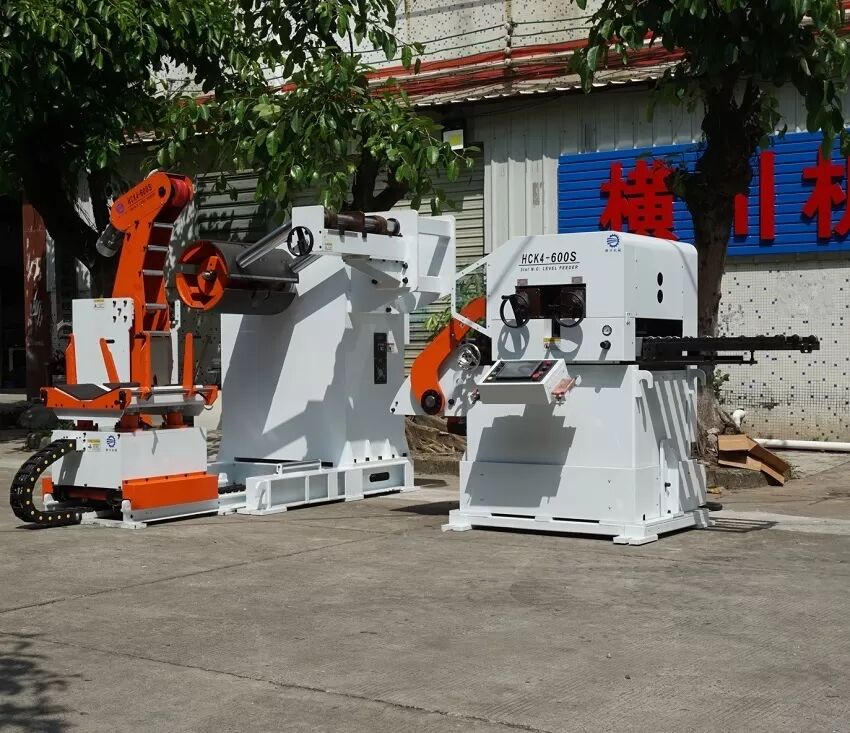

Industrial Sheet Leveler Machine with 9 Leveling Hoops Electronic Straightening Adjustment 0

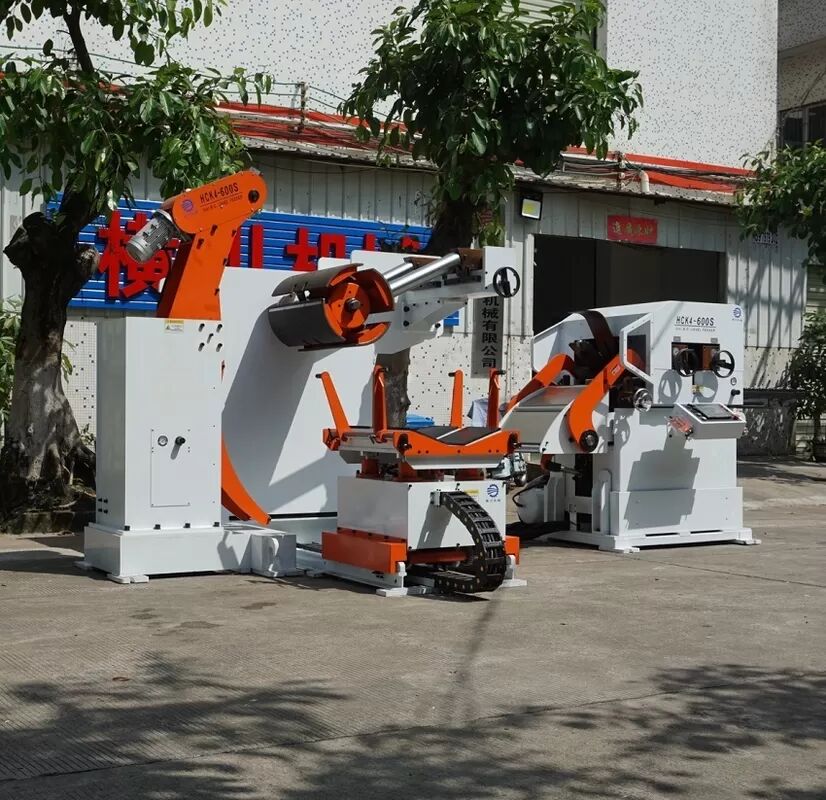

Industrial Sheet Leveler Machine with 9 Leveling Hoops Electronic Straightening Adjustment 1

Company Profile


Dongguan Qiaosen Machinery Co.,Ltd which have our own factory located in Jiangsu province, established in 2016,Closed to shanghai city and transportation is very convenient, a birth place of creative minds and gifted talents. Our factory took the lead in passed authentication of the ISO9001:2008 quality management system . A factory specialized in the production of pneumatic press machine. Mainly products 25 tons to 1600 tons press machine with 8 series, have more than 100 types, link single column, four column, c frame, h frame and all kinds of press machine, punching machine, folding machine, cutting machine, is used in aviation, space flight, automobile, ship, light appliance, daily used hardware and so on. All along, the company products with exquisite design, reasonable price, excellent quality and efficient after-sales service and technical support, received the affirmation of customers at home and abroad, sell well in more than 20 domestic provinces, cities and districts, and exported to United States, Japan, Russia, European Union, southeast Asia, the Middle East and other countries.

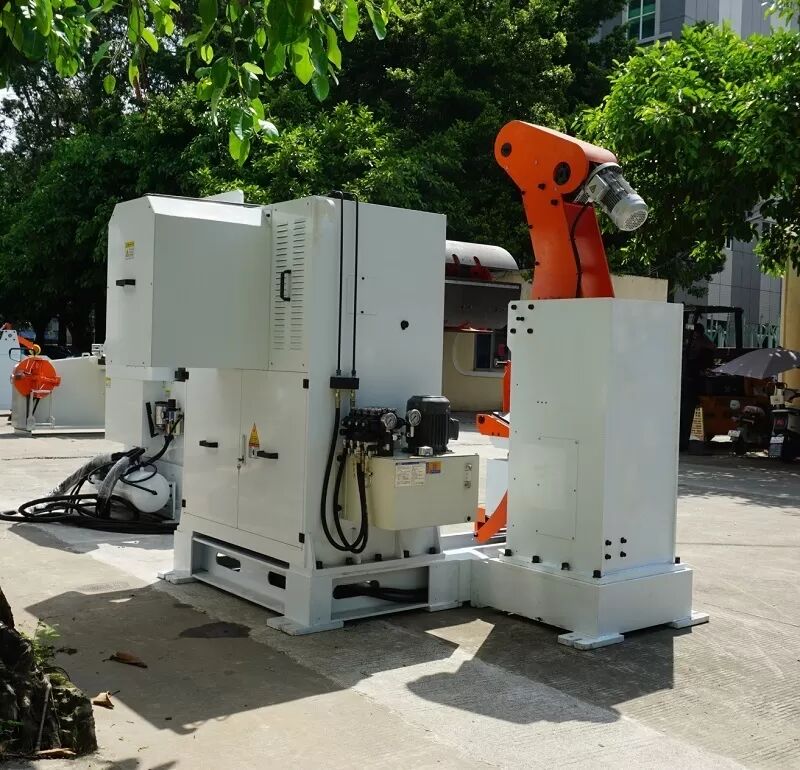

Industrial Sheet Leveler Machine with 9 Leveling Hoops Electronic Straightening Adjustment 2

Product Configuration

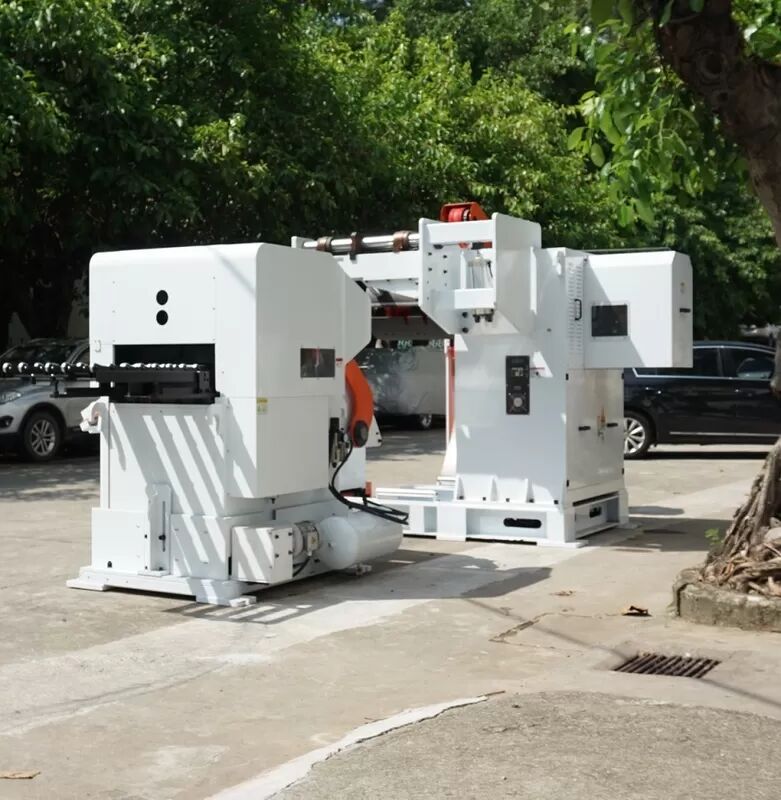

Industrial Sheet Leveler Machine with 9 Leveling Hoops Electronic Straightening Adjustment 3

Warranty & Service
  • One year warranty for complete press machine
  • Comprehensive spare parts availability
  • International brand electrical components
  • Technical training and consulting via email, phone, or video
  • On-site engineer service available
  • English operation and maintenance manual included
  • Certificate of conformity provided
Quality Assurance
Machinery test report and video outgoing-inspection provided

Industrial Sheet Leveler Machine with 9 Leveling Hoops Electronic Straightening Adjustment 4

Frequently Asked Questions
Are you manufacturer?
Yes, we are manufacturer for more than ten years.
What kind of payment term you can do?
We are flexible about payment terms, please contact us for details.
What info you need before you make the proposal for a roll forming machine?
The profile drawings, material informations, your special requirements.
What I should do if I just start to know roll forming machinery?
Contact us immediately, we provide free consultant pre-sales service.
